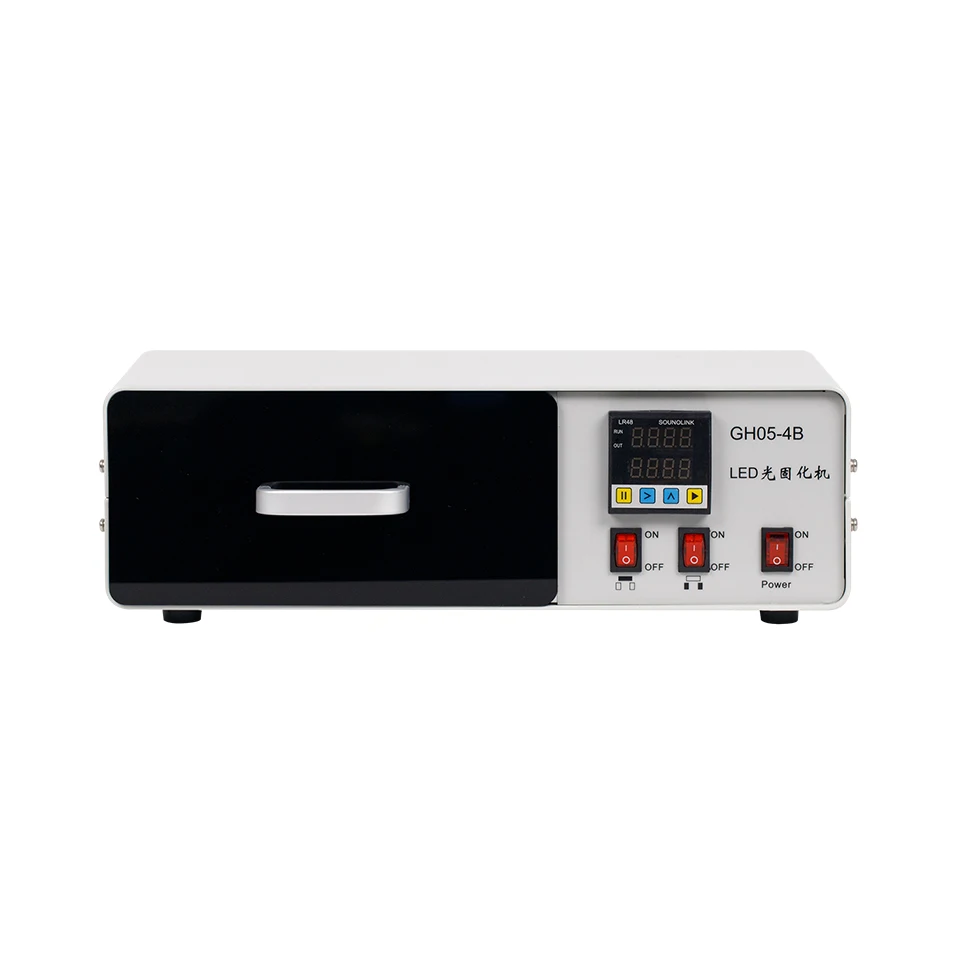

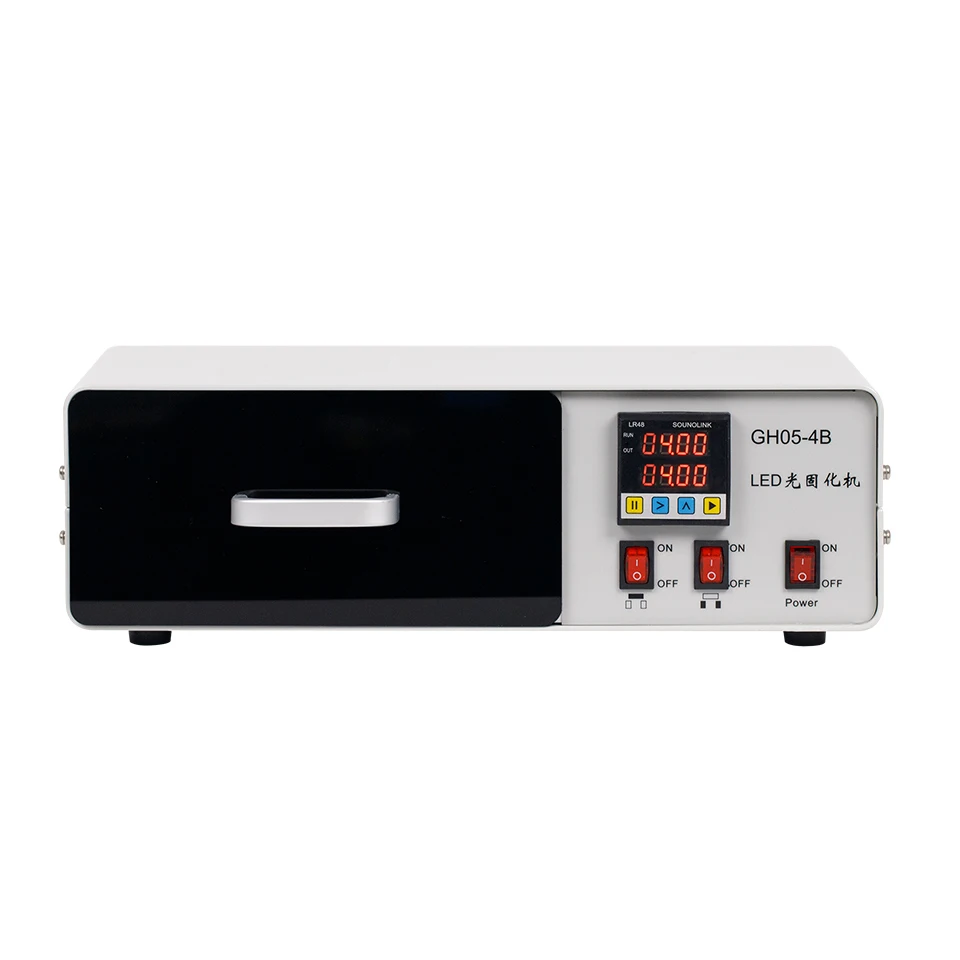

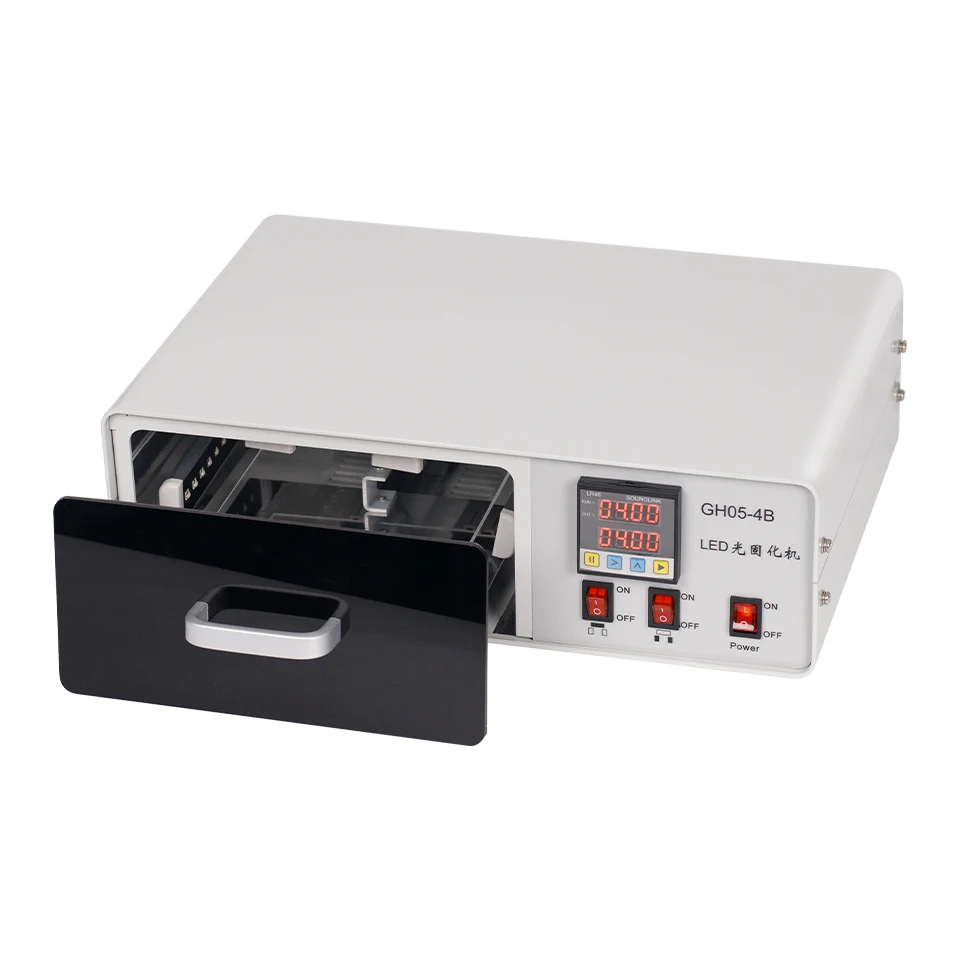

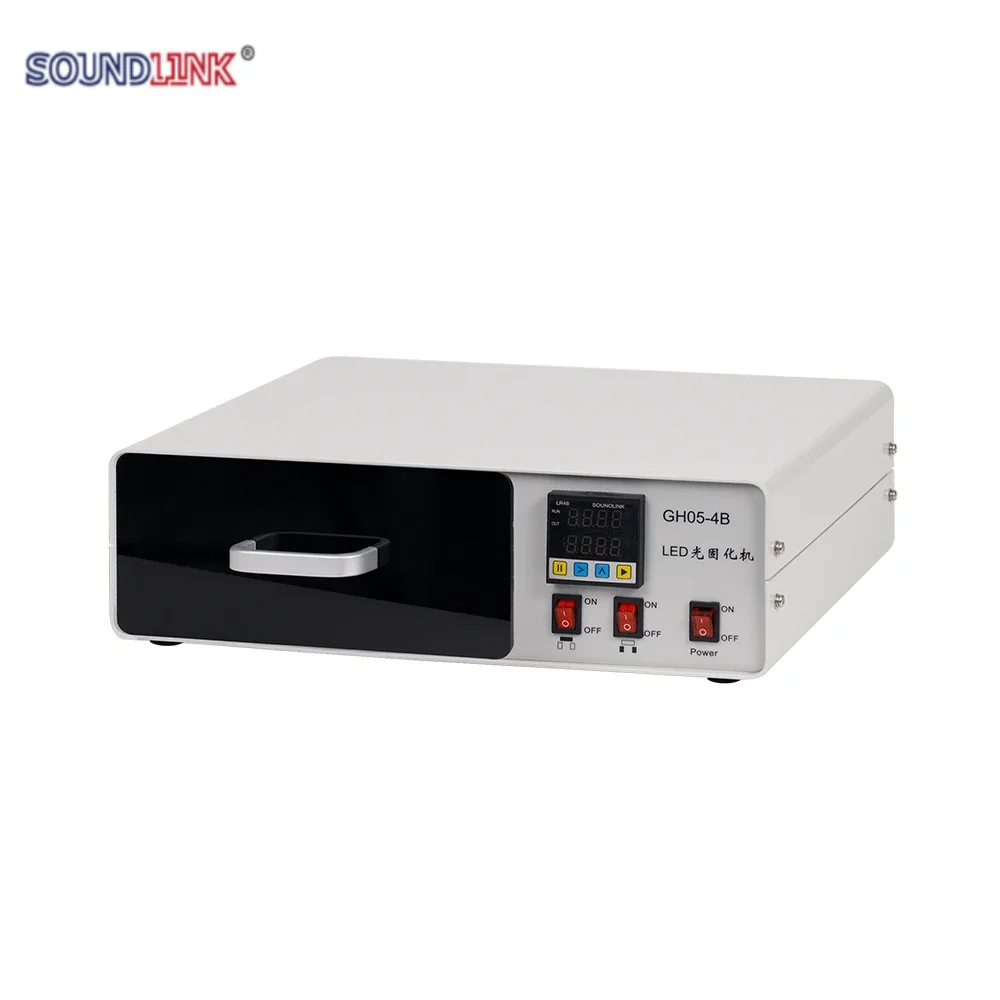

LED UV Light Curing Chamber Epoxy Curing Unit 315-400 nm for Earmolds In-ear Monitors Shell Making

LED UV Light Chamber Epoxy Curing Chamber 315-400 nm for Earmolds In-ear Monitors Hearing Aids Shell Curing

Brand: Soundlink
Mold: GH05-4B
Weight: 14.3 lb (6.78kg)
Electrical Voltage: 110V 60 Hz or 220V 50 Hz

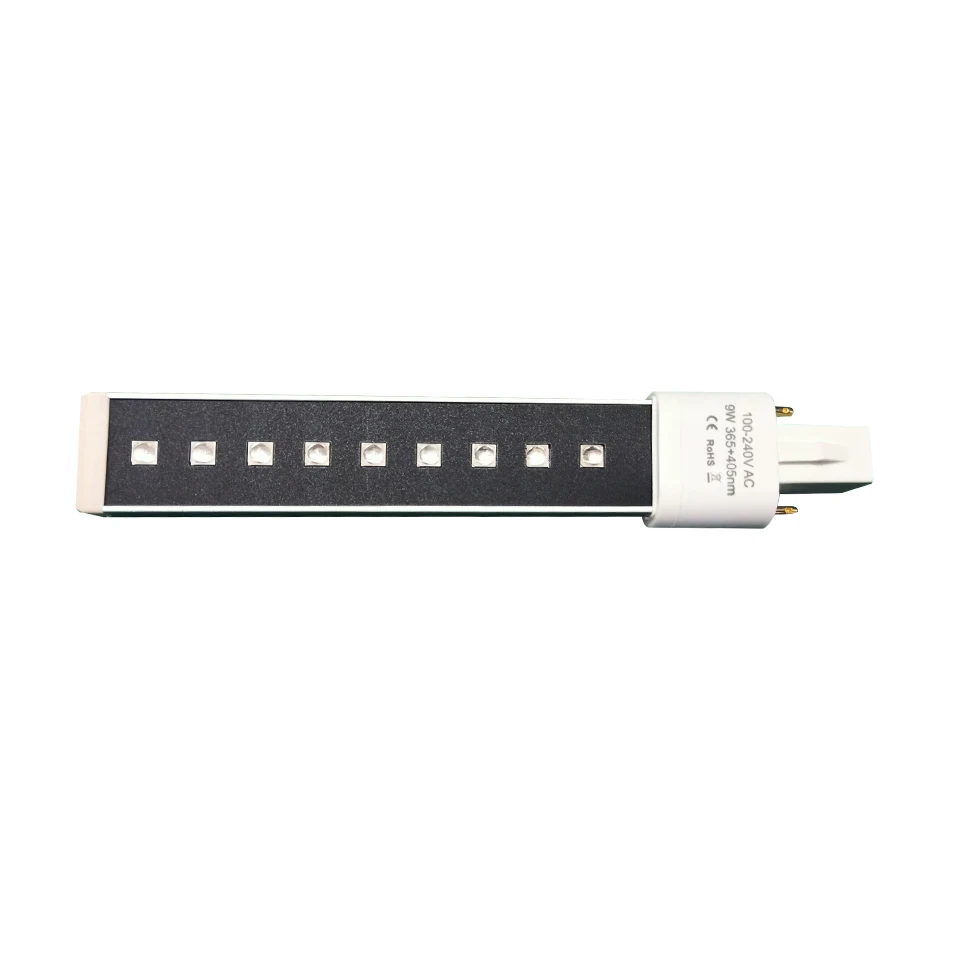

UV lamps:4 UV 9W lamps in this UV curing chamber

Overall Dimension:
12.6”L x 9.4”W x 4.3” H
(320mm L) x (240mm W) x (110mm H)

The GH05-4B cure chamber is a completely contained, operator-safe, UV exposure chamber – ideal for applications that require exposure on multiple sides simultaneously. The heart of this system uses an array of custom-designed LED lamps emitting a peak wavelength of 315nm-400nm. This long-wave UVA portion of the light spectrum is most effective for rapid-curing UV materials or adhesives.

The GH05-4B Cure Chamber features a digital countdown programmable timer to assure repeatable results, power-down mode, a safety interrupt switch, a viewing panel and an exposure completion audible signal. The internal chamber is lined with highly reflective material, assuring even light distribution, making this unit a great choice for multi-dimensional UV curing.
