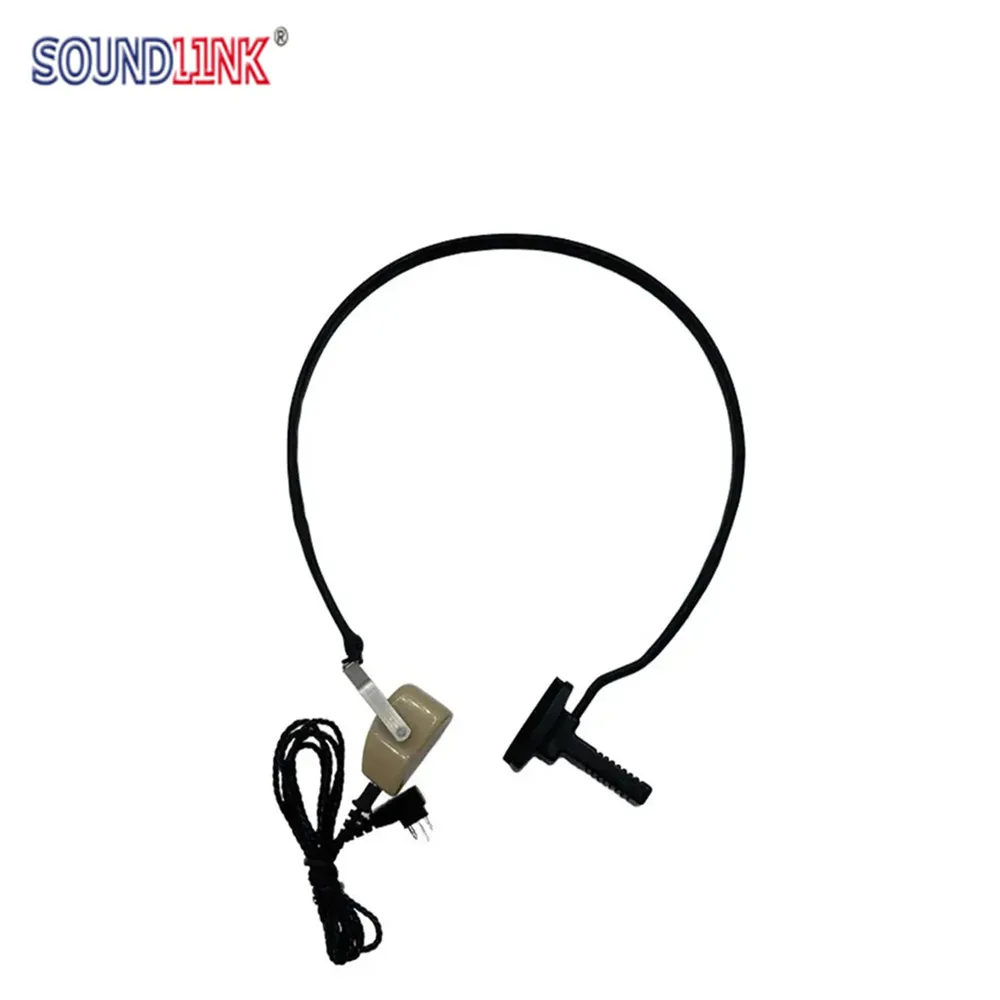

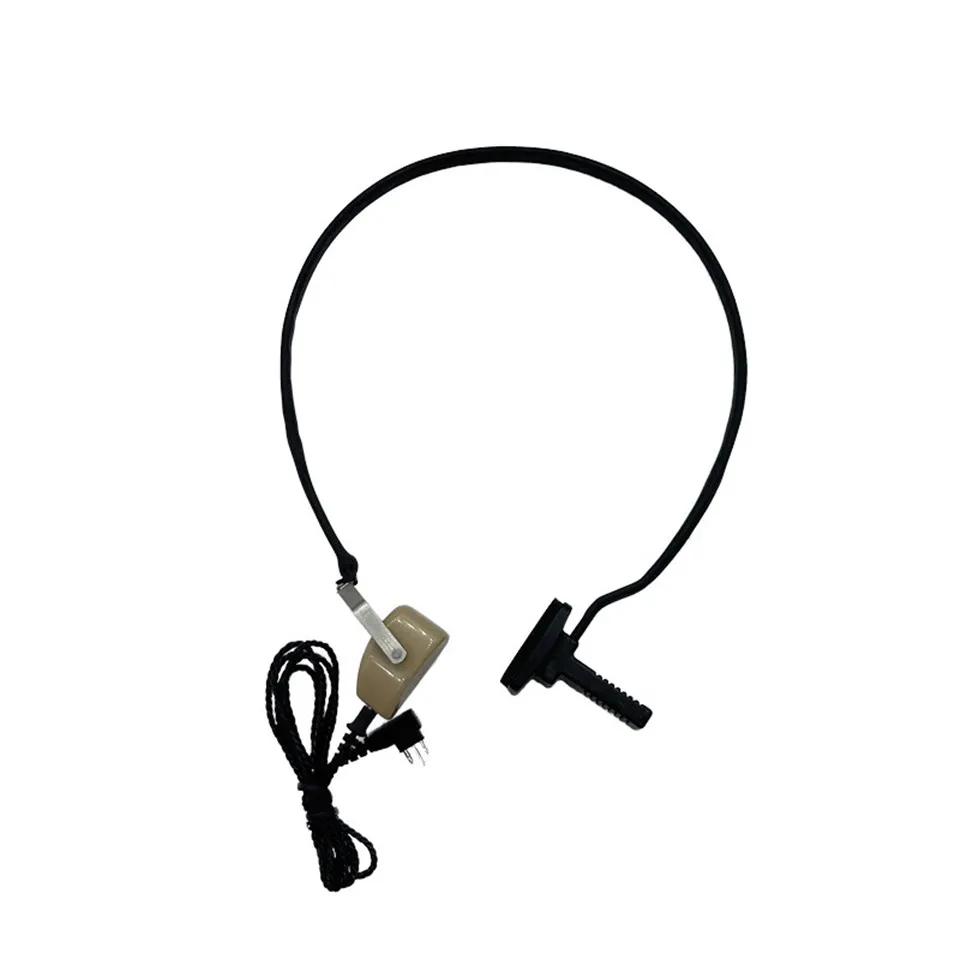

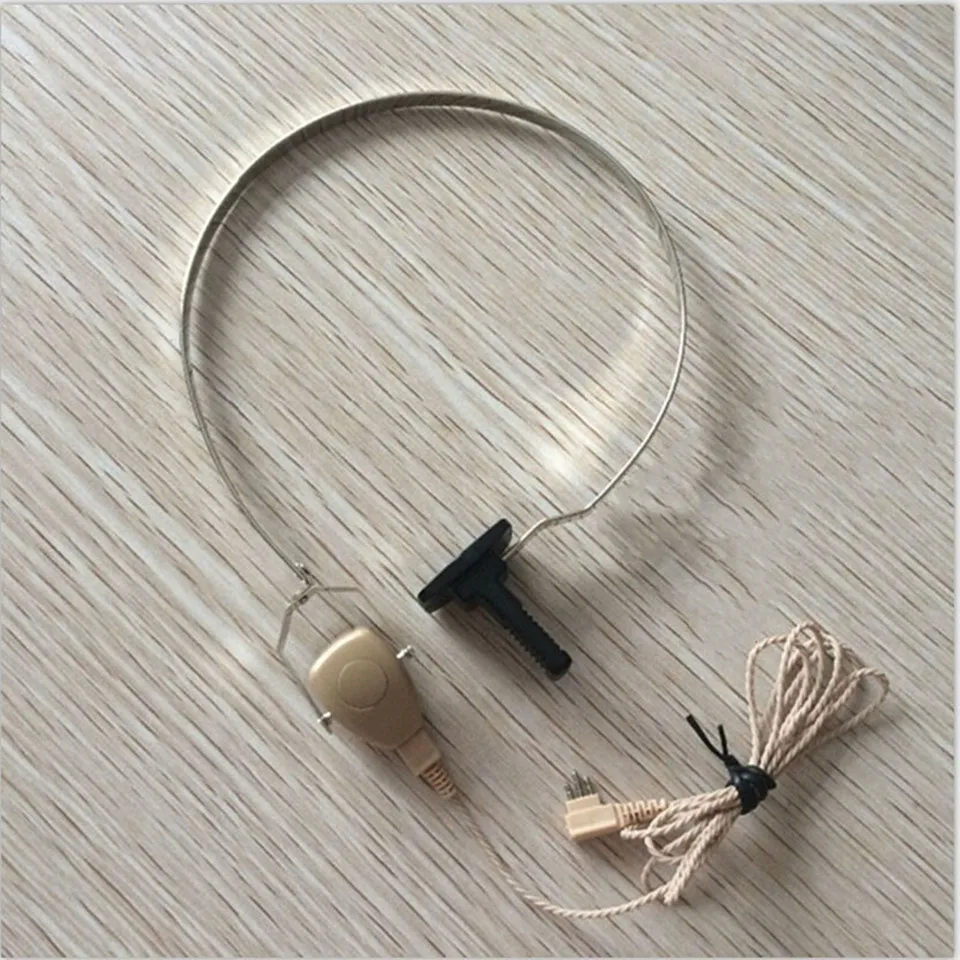

BAHA 3 Pin Bone Conductor Vibrator Headsets with High Quality Headband Hearing Aids Cable for Hearing Aid System

BAHA 3 Pin Bone Conductor Vibrator with Headband Cable for Hearing Aid System

Hearing aids of the type with bone conductor are intended for people who are unable to wear conventional hearing aids, or who have conductive hearing loss.

Like conventional air conduction hearing aids, aids of this type amplify sounds. However, unlike conventional hearing aids, the amplified sound is passed not into your ear canal but instead, by vibration, through the bones in your skull.

These vibrations are transmitted directly to the cochlea – completely by-passing the outer ear and middle ear.
Generally, hearing through the bones is not as efficient as hearing through air conduction – so conventional air conduction hearing aids are recommended wherever possible.

Specifics:

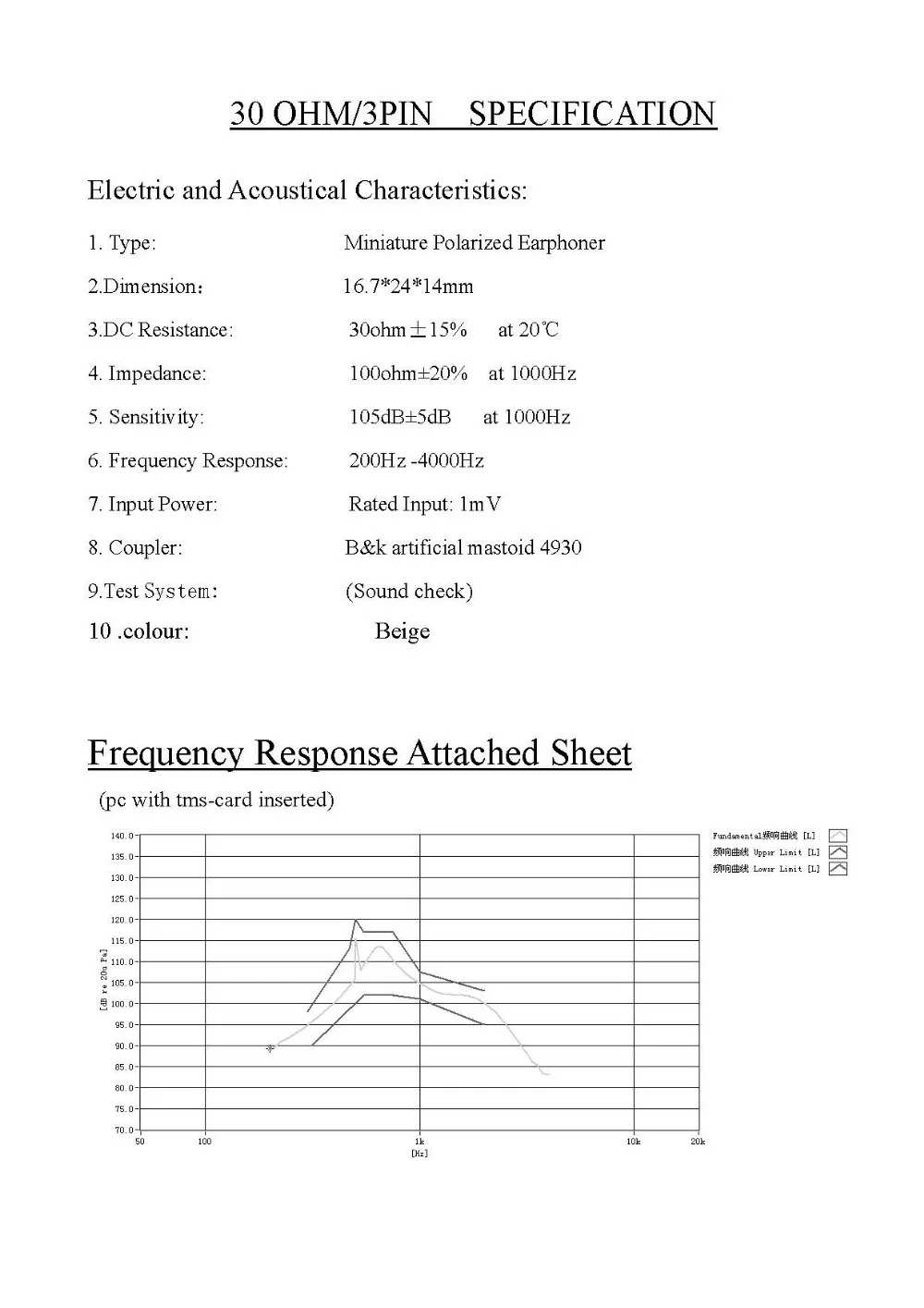

30 OHM/3PIN SPECIFICATION

Electric and Acoustical Characteristics:
1. Type: Miniature Polarized Earphoner
2. Approximate size 16.9mm x 24mm x 14mm thick
3. DC Resistance: 30ohm±15% at 20℃
4. Impedance: 100ohm±20% at 1000Hz
5. Sensitivity: 105dB±5dB at 1000Hz
6. Frequency Response: 200Hz -4000Hz
7. Input Power: Rated Input: 1mV
8. Coupler: B&k artificial mastoid 4930
9.Test System: (Sound check)
10 .Colour: Beige

Package included:

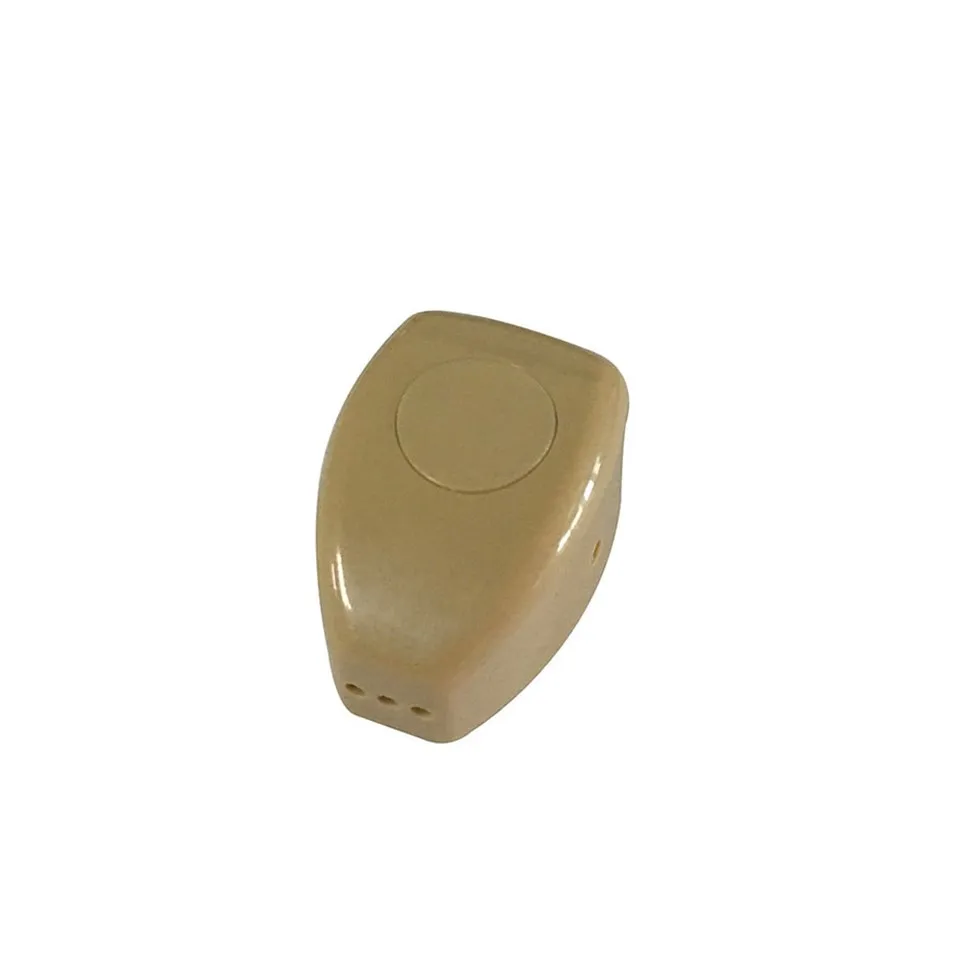

1x Hearing Aid 3Pin Bone Conduction vibrator
1x Headband

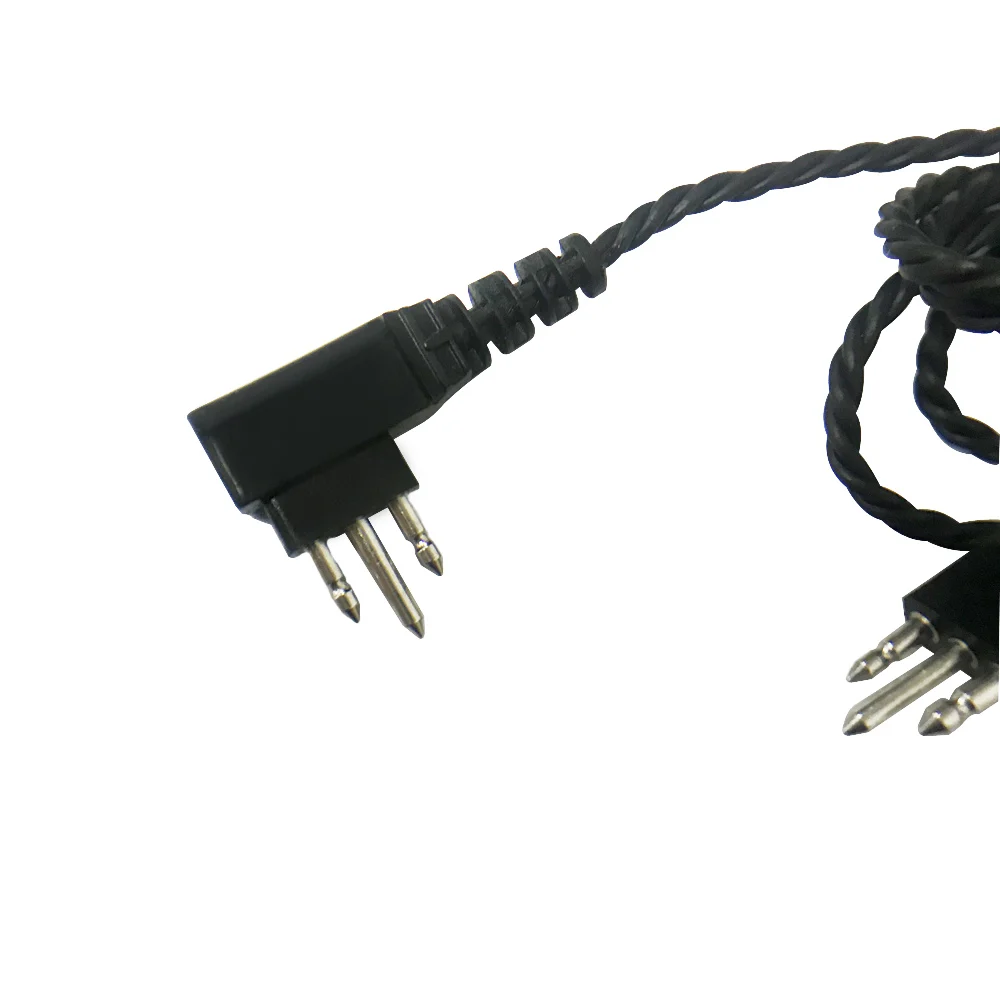

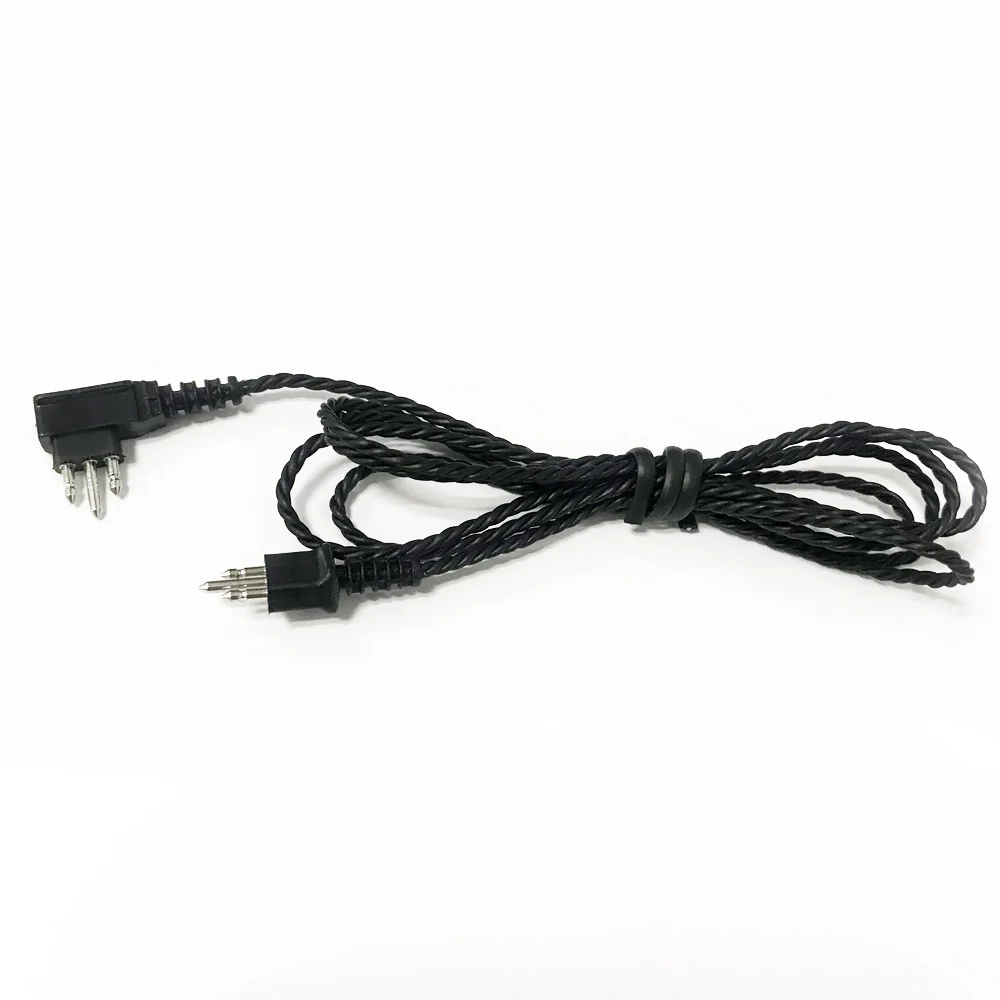

1x Hearing Aid 3Pin Cable (black)
