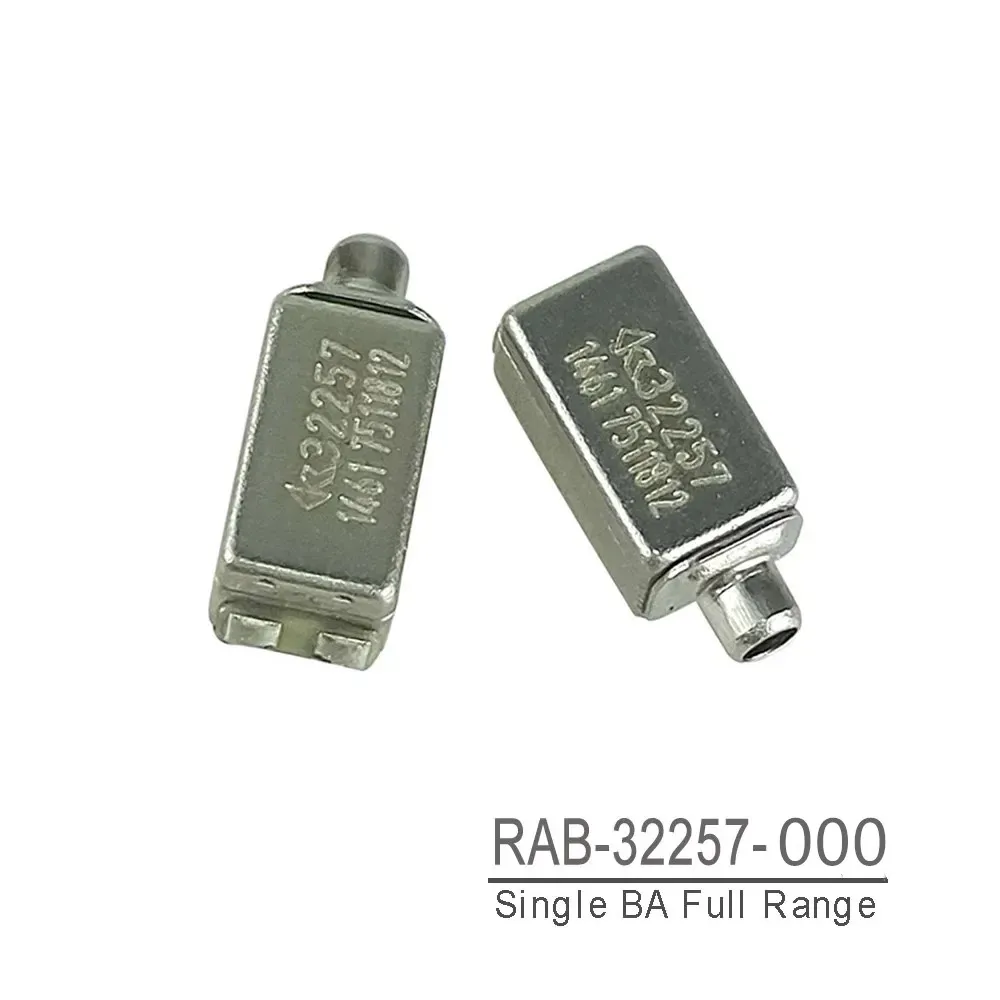

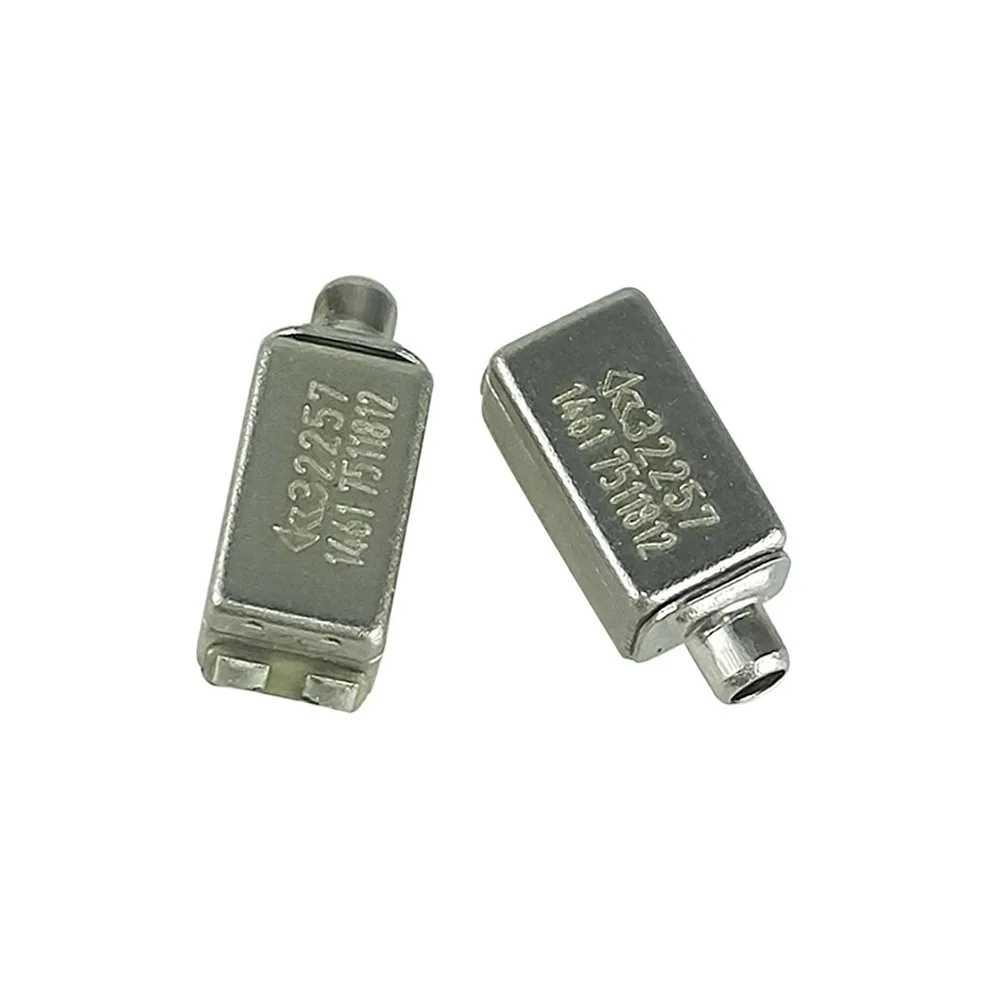

2PCS RAB-32257 Knowles Balanced Armature BA Driver Receiver Full Range Frequency Speaker
51.64$
Hign-concerned Chemical: None Origin: Mainland China Brand Name: SoundLink Item name: Knowles RAB-32257-000 Sensitivity: 105.5 Port Loc.: 12C Type: Balanced Armature Frequency Range: 20Hz ~ 11kHz Impedance: 48 Ohm Sound Pressure Level: 105.5dB Termination Style: Solder Pads Size in mm: 5.15mm x 2.96mm Height – Seated (Max): 0.203″ L x 0.117″ W Feature: Full range frequency Notice : Please wire touch unit contacts for testing the drivers before soldering, […]
80 in stock
Description
- Hign-concerned Chemical: None
- Origin: Mainland China
- Brand Name: SoundLink
- Item name: Knowles RAB-32257-000
- Sensitivity: 105.5
- Port Loc.: 12C
- Type: Balanced Armature
- Frequency Range: 20Hz ~ 11kHz
- Impedance: 48 Ohm
- Sound Pressure Level: 105.5dB
- Termination Style: Solder Pads
- Size in mm: 5.15mm x 2.96mm
- Height – Seated (Max): 0.203″ L x 0.117″ W
- Feature: Full range frequency
Notice :
Please wire touch unit contacts for testing the drivers before soldering, Replacements are NOT available once drivers have been soldered.
Knowles Full Range Frequency BA Receiver RAB-32257 IEM Driver
Feature:
• Warm bass
• Excellent bandwidth for small driver
• Excellent price-performance ratio
• RoHS compliant

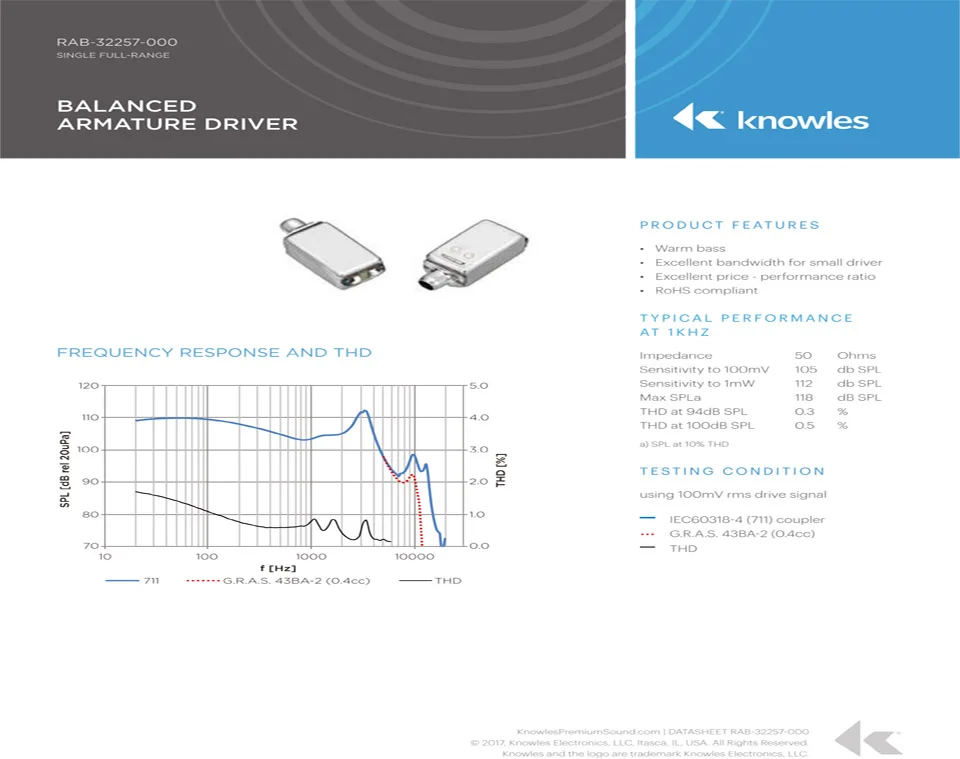

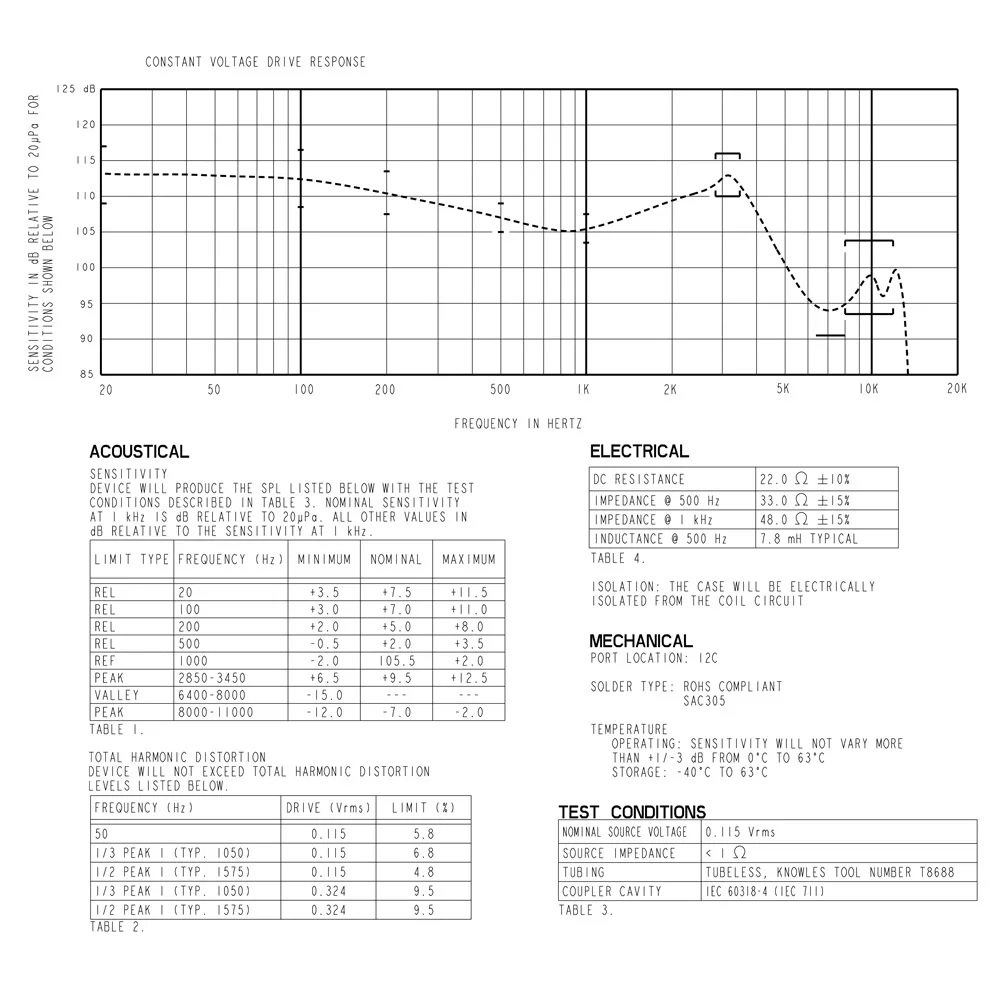

Typical Performance at 1khz :
Impedance 50 Ohms
Sensitivity to 100mV 105 db SPL
Sensitivity to 1mW 112 db SPL
Max SPLa 118 dB SPL
THD at 94dB SPL 0.3 %
THD at 100dB SPL 0.5 %
a) SPL at 10% THD
