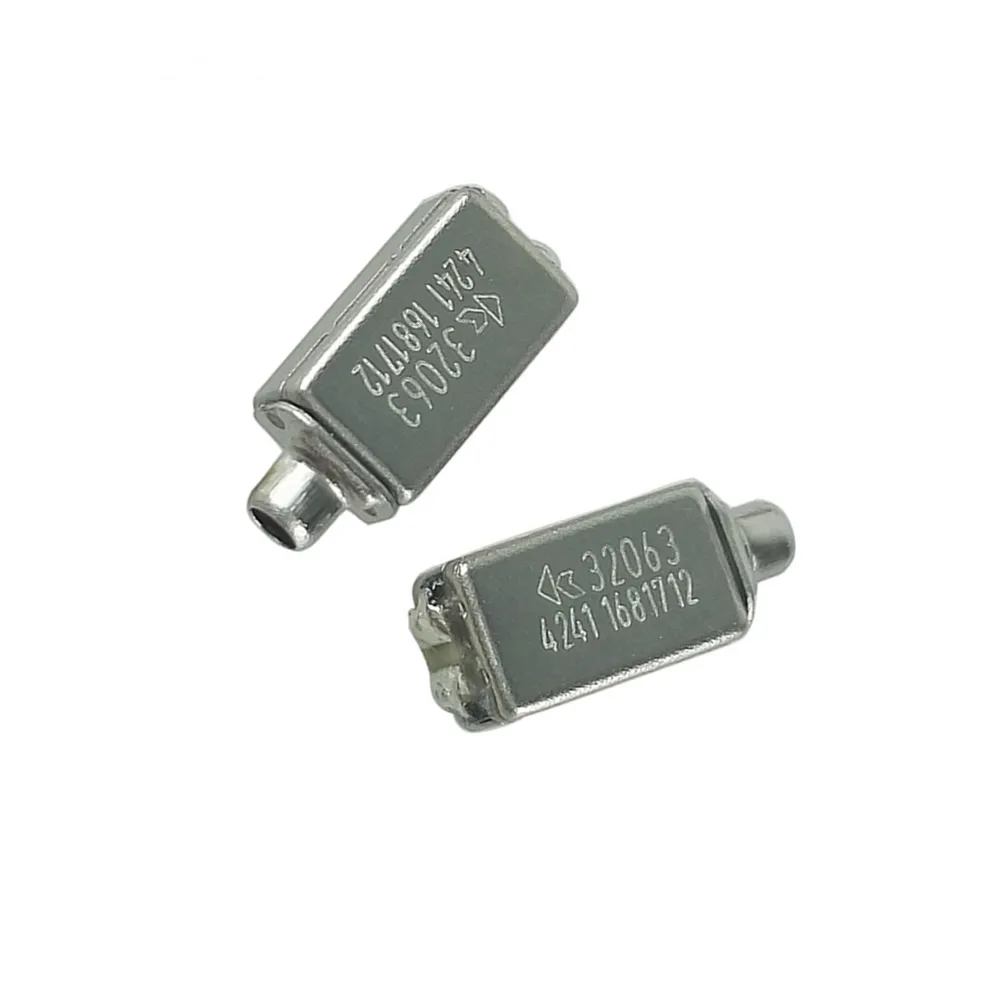

2PCS RAB-32063-000 Knowles Balanced Armature Driver Receiver Speaker IEM In-ear Monitor Single Driver Full Range Frequency

Notice: Please wire touch unit contacts for test before install it. Replacements are not available once drivers been soldered.

Series RAB produces a rich, full-range sound in a small physical size. Three sound profiles fulfill a wide range of earphone designs, including hybrids:
Model 32063 also suitable as midrange-tweeter in hybrid earphones

32063 with balanced sound
Item Model: RAB-32063-000
Type: Magnetic, Balanced Armature
Frequency Range: 80Hz ~ 10.8kHz
Impedance: 46.3 Ohm
Sound Pressure Level: 103.5dB

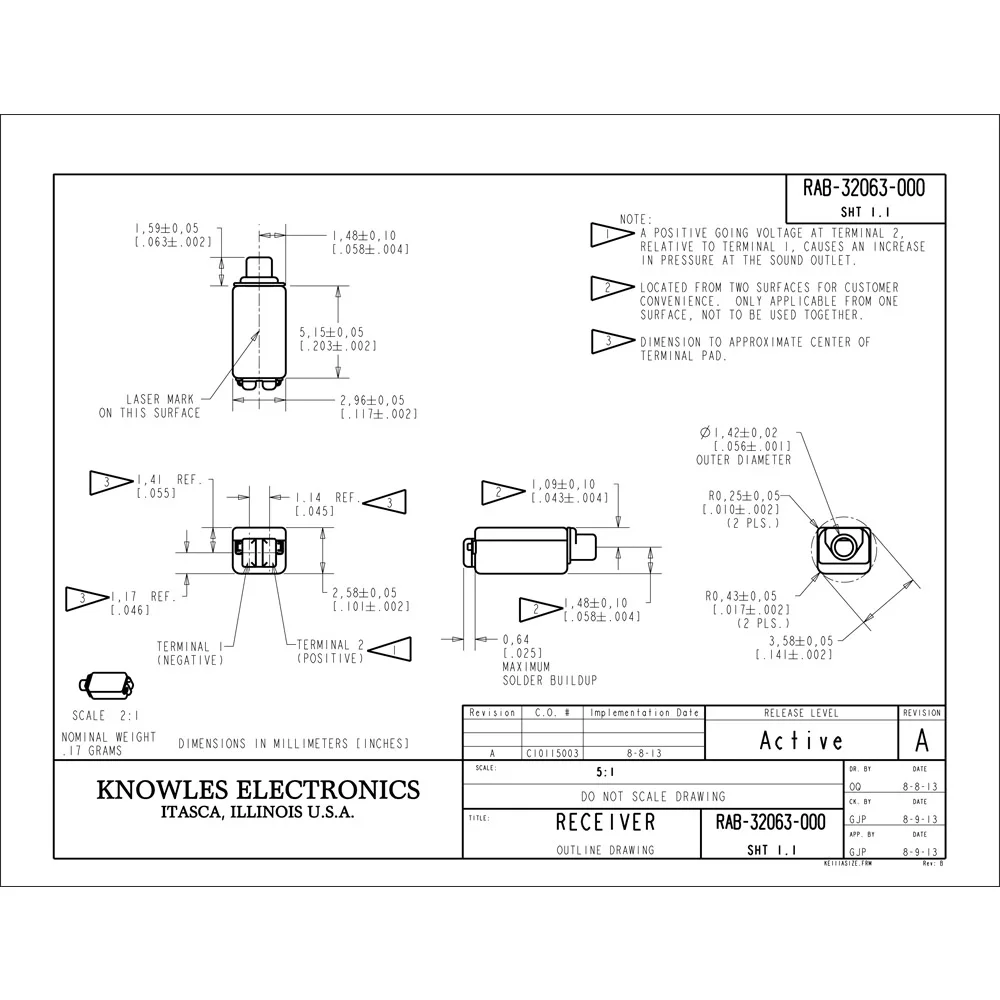

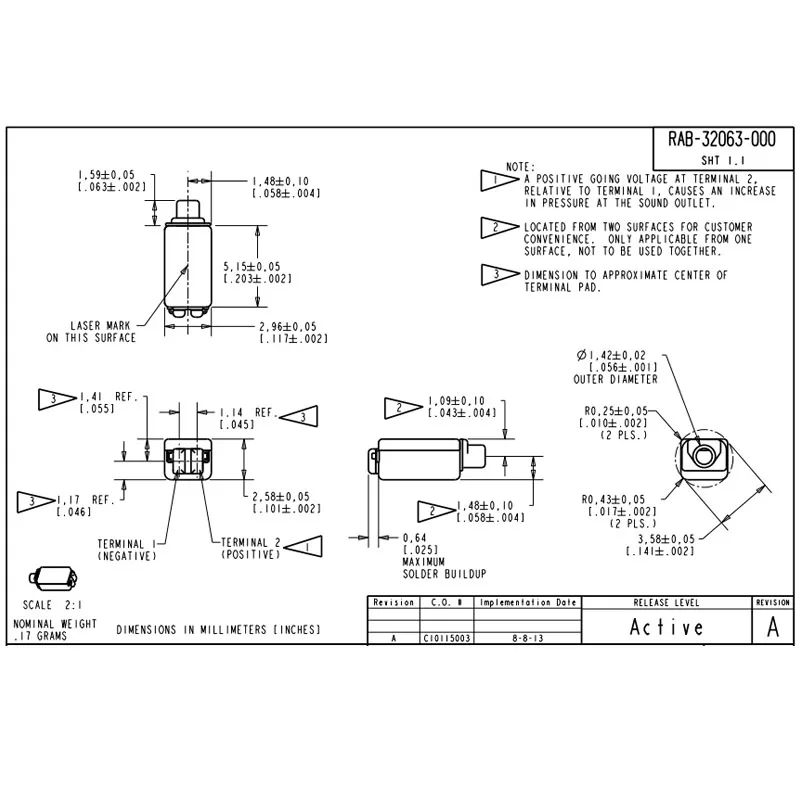

Size / Dimension: 0.203″ L x 1.117″ W (5.15mm x 2.96mm)
Height – Seated (Max): 0.103″ (2.63mm)
