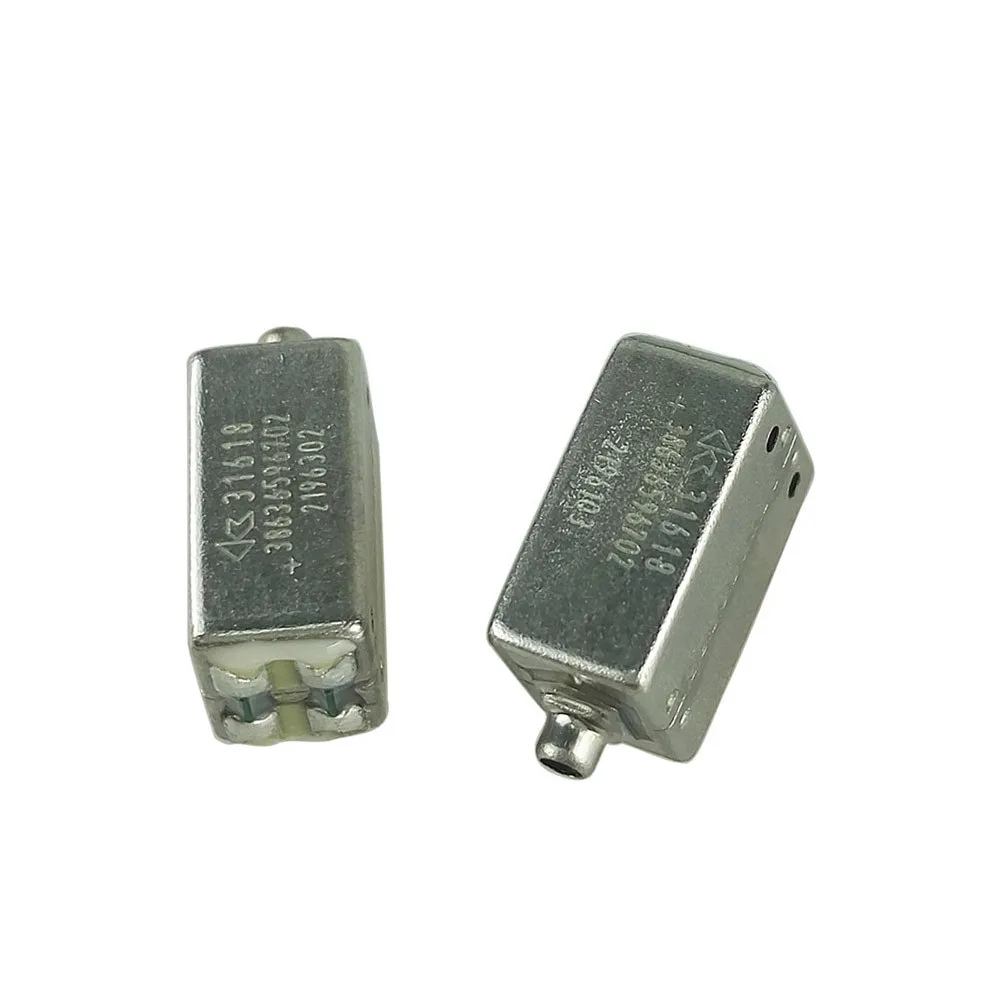

2PCS Knowles HODVTEC-31618 BA Balanced Armature Receiver Dual Bass Driver Speaker DIY Earphones In Ear Monitors

2PCS Knowles HODVTEC-31618 BA Balanced Armature Receiver Dual Bass Driver

Knowles TEC Series Balanced Armature Speakers are intended for use in high-power hearing aids and combine output comparable to the larger BK receiver in an ultra-thin package. They are similar in size to an EF receiver and have a medium DCR-to-impedance ratio. The TEC Series operating sensitivity will not vary more than +1/-3dB from -17ºC to 63ºC.

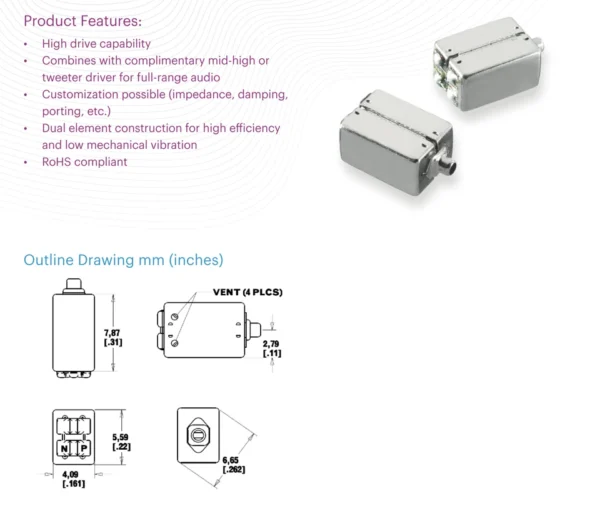

DTEC Series Balanced Armature Speakers (7.87 x 4.09 x 5.59mm) combine two TEC speakers with a single round port. The housing size is equivalent to BK/EF. DTEC provides increased output and reduced vibration compared to a single speaker.

Reminder:

Please test the driver first before soldering, replacements are not available once drivers are soldered

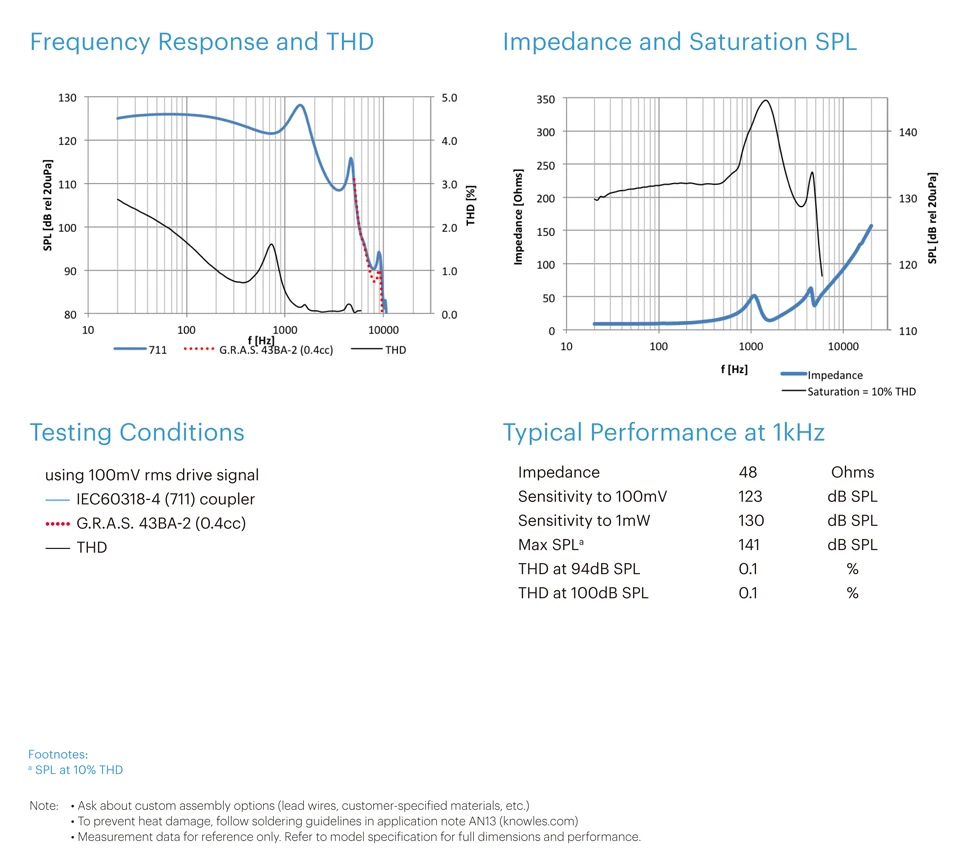

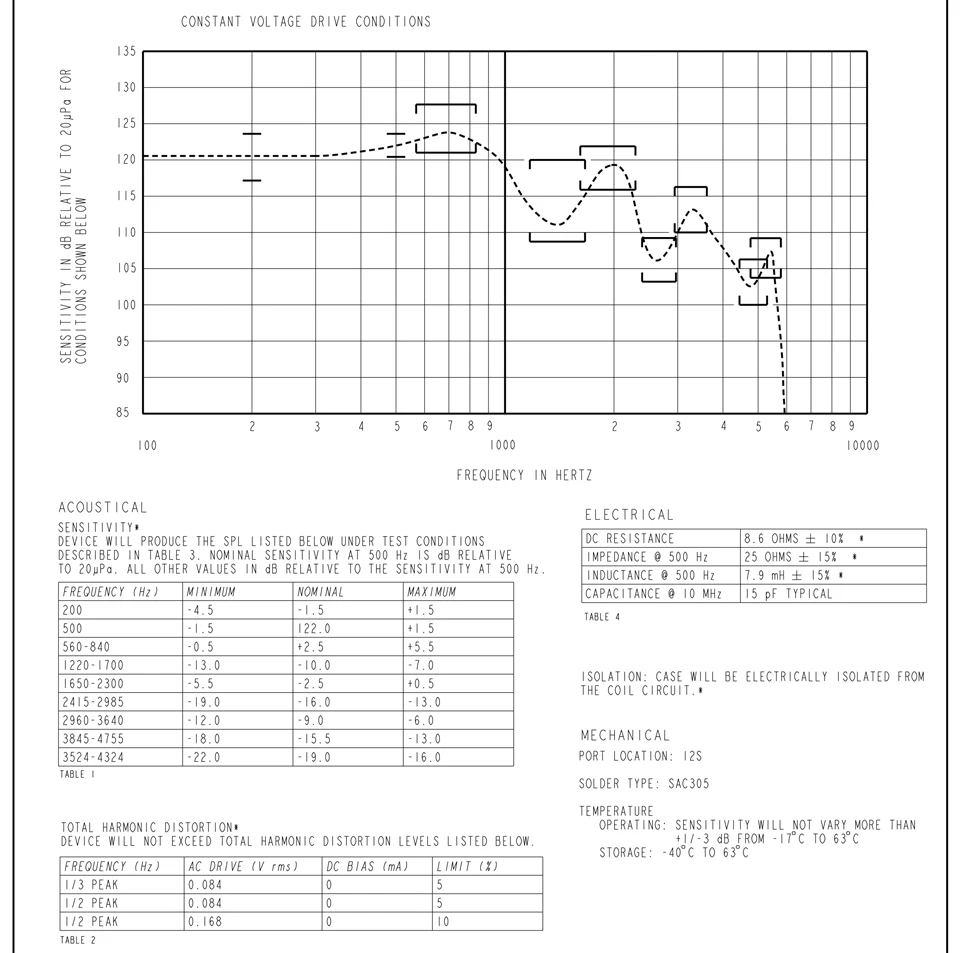

Specifications

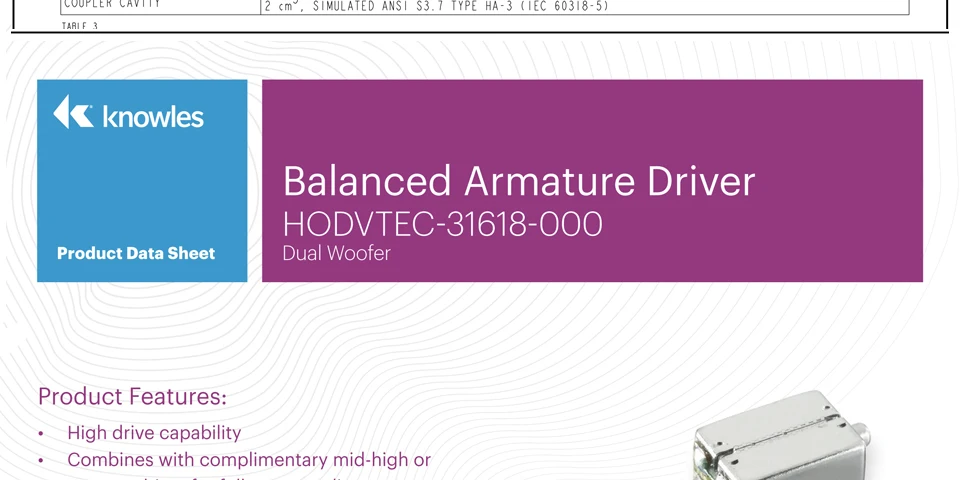

Item name: HODVTEC-31618-000
Category: Audio Products
Manufacturer: Knowles

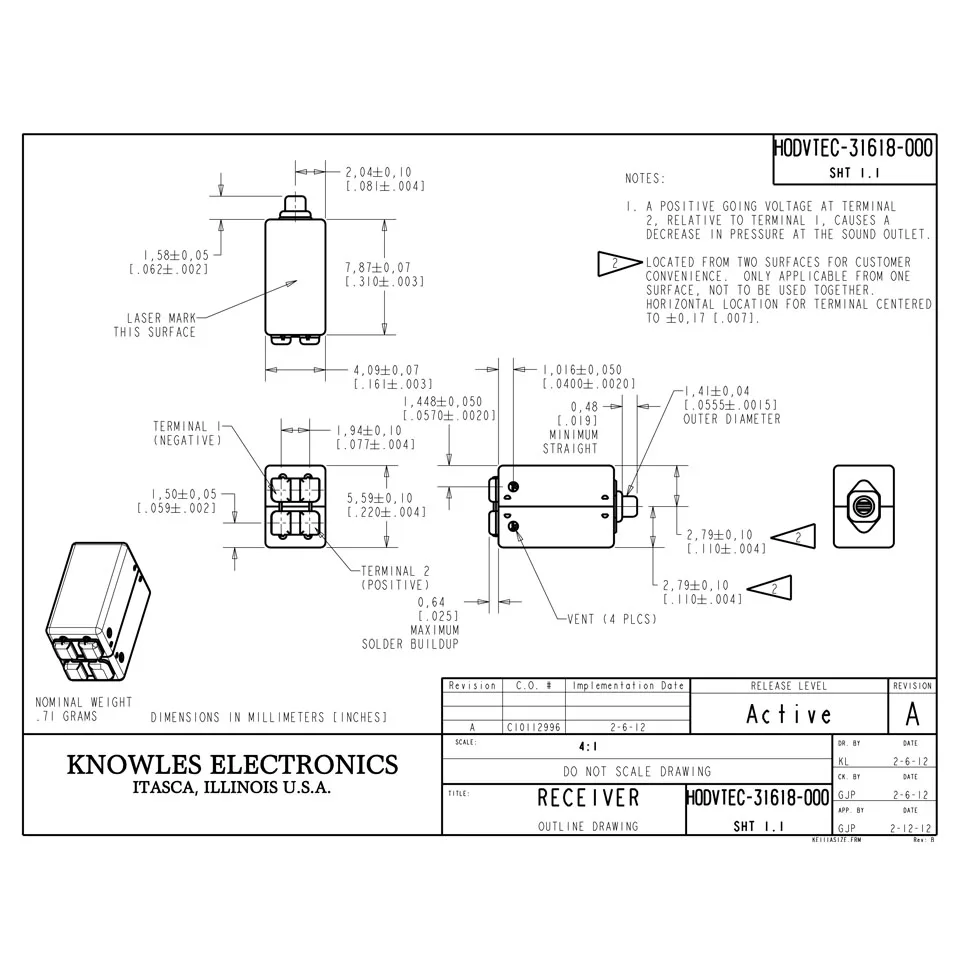

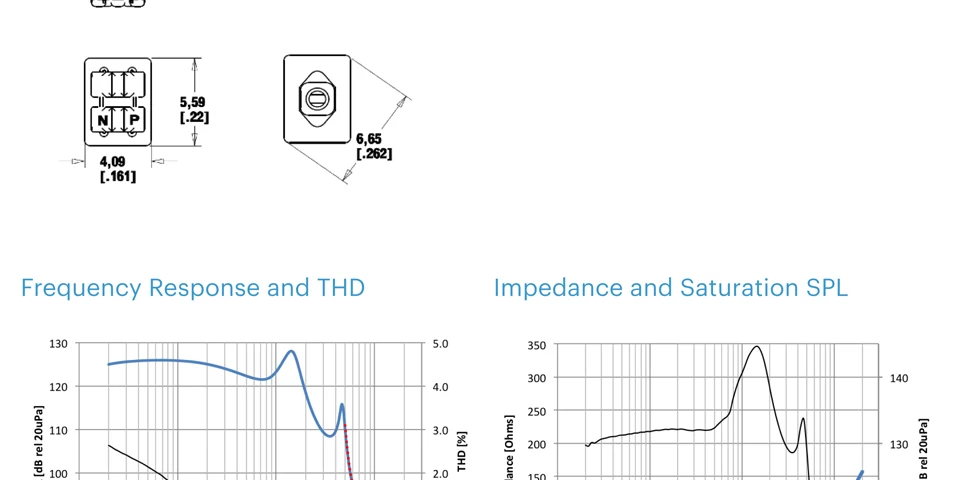

Size: 7.9mm H x 5.6mm L x 4.1mm W
Type: Receiver, Magnetic, Balanced Armature
Frequency Range: 200Hz ~ 4.324kHz
Impedance: 25 Ohm at 50 Hz
Sound Pressure Level: 122dB
Feature: Low Frequency

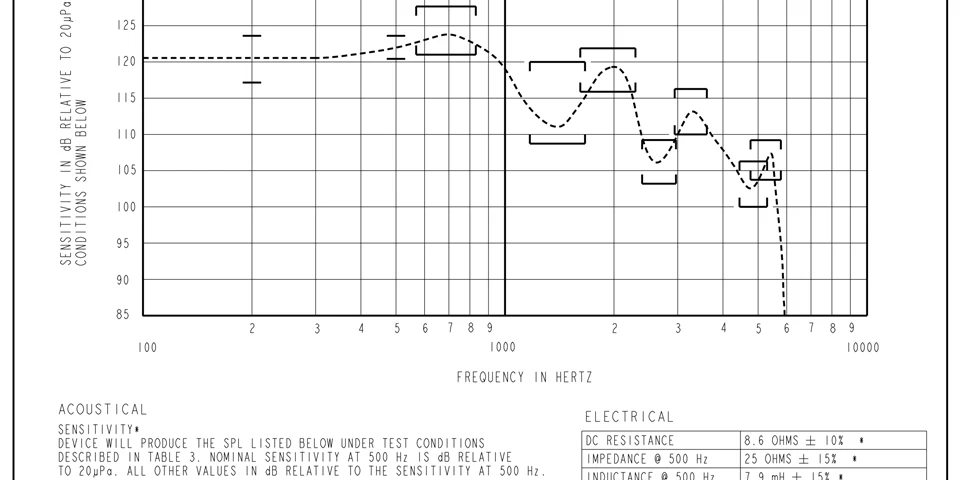

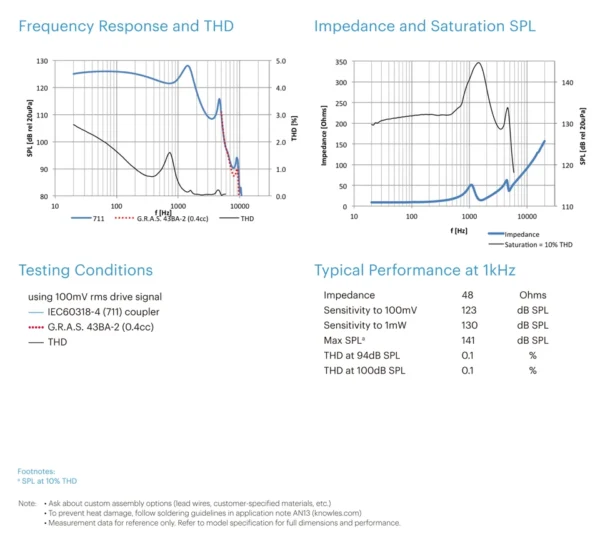

SENS(dB SPL) TO 100mV / TO 1mW: 123/130
MAX SPL 10% THD 1kHz(dB SPL): 141
THD@94dB SPL/THD@100dB SPL: 0.1%/0.1%
Vented: Yes
Configuration: Dual

Features

* Ultra-thin
* Wideband output
* Medium DCR to the impedance ratio
* Similar in size to an EF receiver
