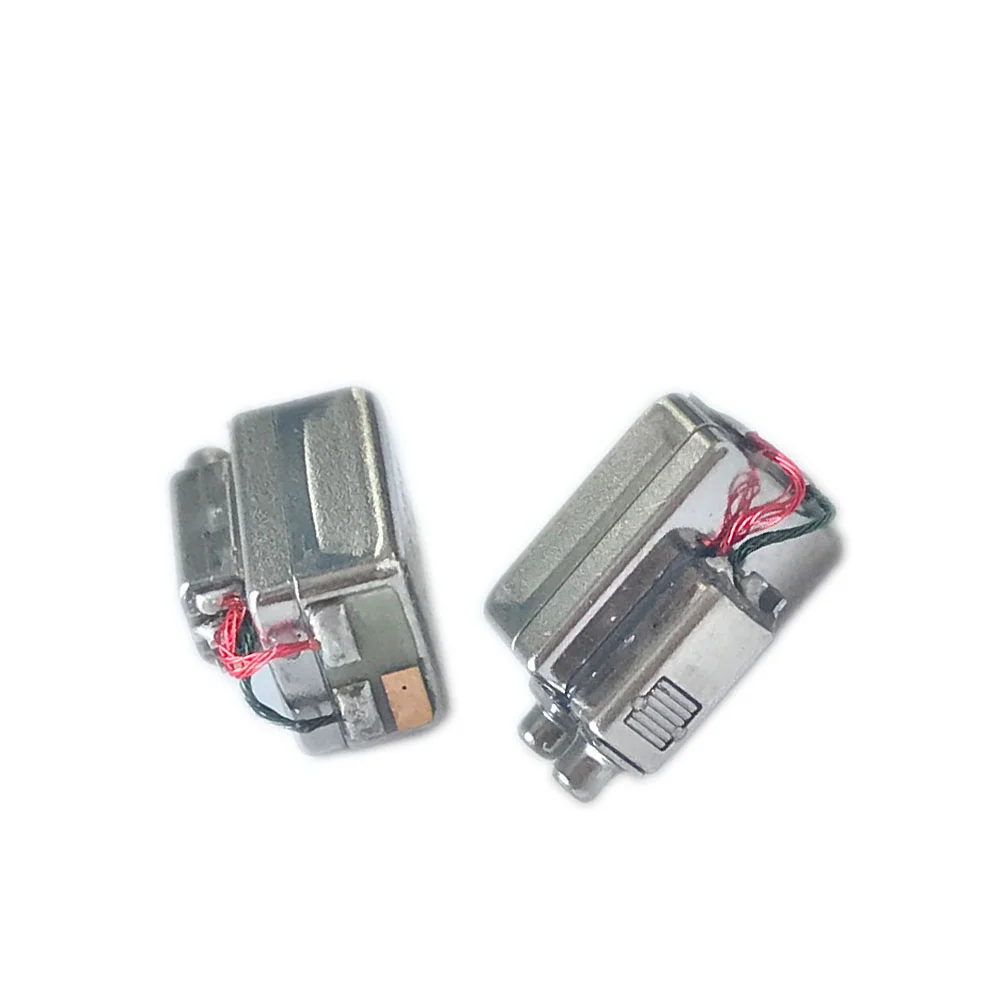

2pcs Knowles GU-32829 Dual Balanced Armature Driver Speaker Receiver DIY IEM Iron Unit

Knowles GU-32829 Dual Balanced Armature Driver Speaker Receiver Contains Two Drivers of Different Sizes Joined Together

Part Number: GU-32829-000

Manufacturer: Knowles

Category: Audio Products

Family: Speakers Magnetic Balanced Armature

Frequency Range: 7.6 kHz

Impedance: 17 Ohms

Sound PressureLevel: 97 dBA

Port Location: Top, Dual Port

Configuration: 2-way

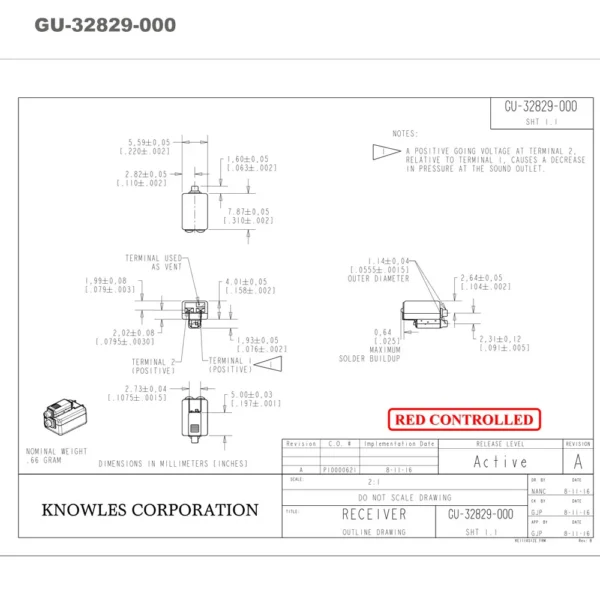

Size: 7.9mm H x 5.9mm L x 5.6mm W

SENS(dB SPL) TO 100mV / TO 1mW: 113/116

MAX SPL 10% THD 1kHz(dB SPL): 131

THD@94dB SPL/THD@100dB SPL: 0.1%/0.2%

Vented: Yes

Knowles releases their GU-32829-000 2-way driver, It contains two drivers of different sizes joined together. Using a BK for bass and FK for mid and high ranges, it produces a broad bandwidth and much clearer output than a single driver.

Features

2-way woofer and tweeter

Excellent bass response

Woofer based on special damped vent BK

FK tweeter provides clear, distinctive midrange

Applications

Pro audio monitors

Hearing health and medical

High performance music earphones

Military and commercial headsets

Notice: * Please test the drivers first before soldering, we don’t provide replacements after drivers be soldered. Thanks for your understanding!!!
