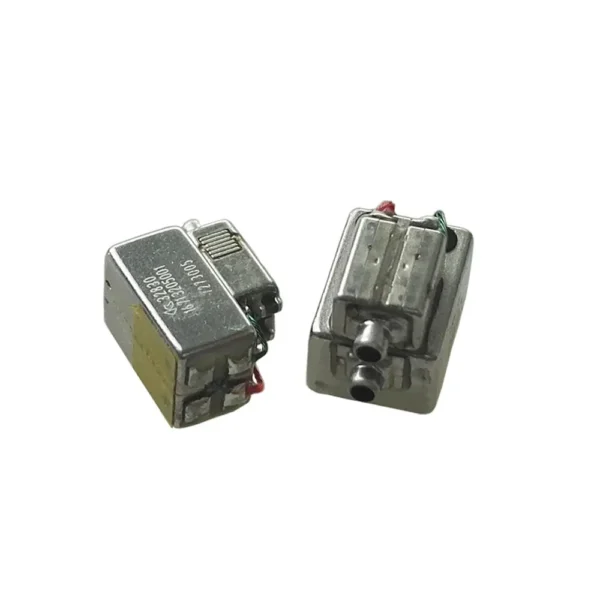

2PCS Knowles Drivers GV-32830 Quad BA Driver Balanced Armature Receiver Speaker DIY IEM
305.71$
Hign-concerned Chemical: None Origin: PH(Origin) Brand Name: SoundLink Category: Knowles quad driver GV-32830-000 Family: Speakers Frequency Range: 70Hz ~ 12.5kHz Impedance: 28.125 Ohm Sound Pressure Level: 113.5dB Port Location: Top, Dual Port Type: Quad BA driver Configuration: 4-way SENS(dB SPL) TO 100mV / TO 1mW: 113/116 MAX SPL 10% THD 1kHz(dB SPL): 125 THD@94dB SPL/THD@100dB SPL: 0.2%/0.3% Vented: Damped Notice : Please wire touch unit contacts for test before install […]
231 in stock
Description
- Hign-concerned Chemical: None
- Origin: PH(Origin)
- Brand Name: SoundLink
- Category: Knowles quad driver GV-32830-000
- Family: Speakers
- Frequency Range: 70Hz ~ 12.5kHz
- Impedance: 28.125 Ohm
- Sound Pressure Level: 113.5dB
- Port Location: Top, Dual Port
- Type: Quad BA driver
- Configuration: 4-way
- SENS(dB SPL) TO 100mV / TO 1mW: 113/116
- MAX SPL 10% THD 1kHz(dB SPL): 125
- THD@94dB SPL/THD@100dB SPL: 0.2%/0.3%
- Vented: Damped
Notice : Please wire touch unit contacts for test before install it. Replacements are not available once drivers been soldered.
GV-32830-000 quad balanced armature driver. It contains four drivers (speakers) with a 3-way crossover composed of HODVTEC woofer and TWFK mid-range/tweeter. It produces an excellent bass response and dynamic range.
GV-32830 has two small ports with a tape on it. You can remove the tape for more bass.
Damper applied:
Knowles White 680Ω Damper on the Tweeter at 5mm and Knowles Brown 1000Ω Damper on the Woofer at 7mm, You’ll need two of each, one for the left and one for the right side.
You can also reduce the highs with orange or yellow dampers in both tubes
Description
Category: Knowles quad driver GV-32830-000
Family: Speakers
Frequency Range: 70Hz ~ 12.5kHz
Impedance: 28.125 Ohm
Sound Pressure Level: 113.5dB
Port Location: Top, Dual Port
Type: Quad BA driver
Configuration: 4-way
SENS(dB SPL) TO 100mV / TO 1mW: 113/116
MAX SPL 10% THD 1kHz(dB SPL): 125
THD@94dB SPL/THD@100dB SPL: 0.2%/0.3%
Vented: Damped
Feature:
Premium bandwidth
High dynamic range / low distortion
Complete solution for high-quality hi-fi systems
4 drivers 3 way with rich bass
four back vents with removable seals
(1 tape and 2 screws )
