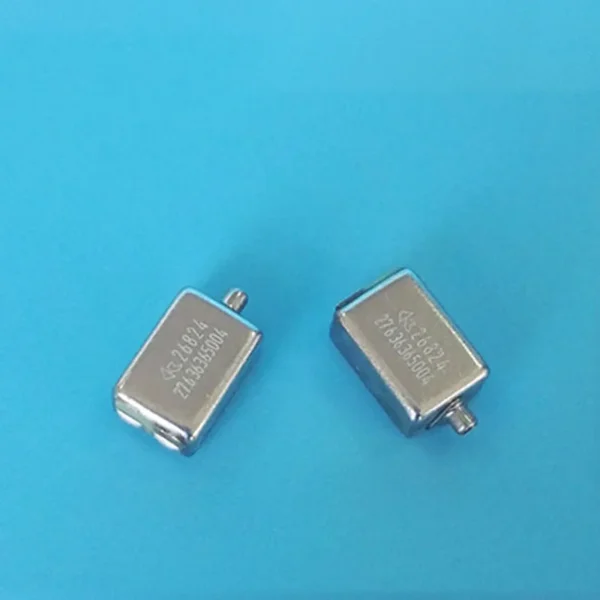

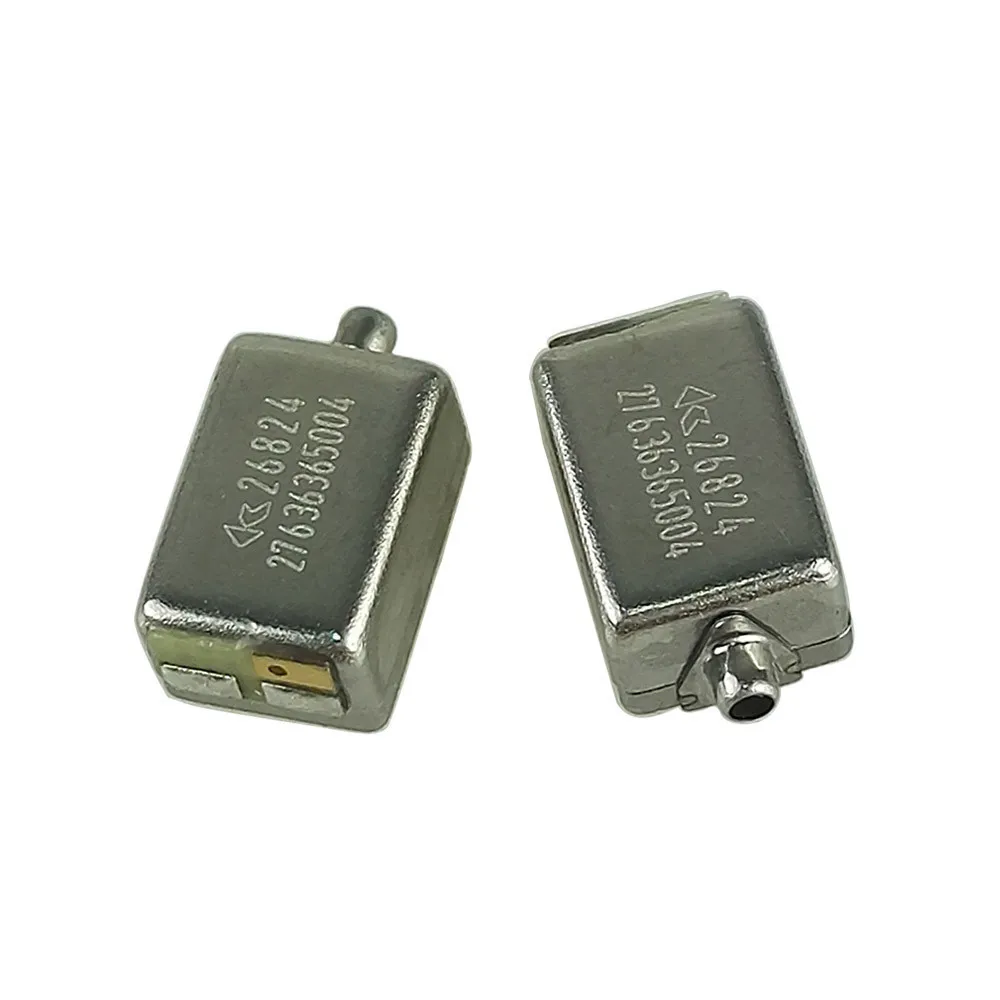

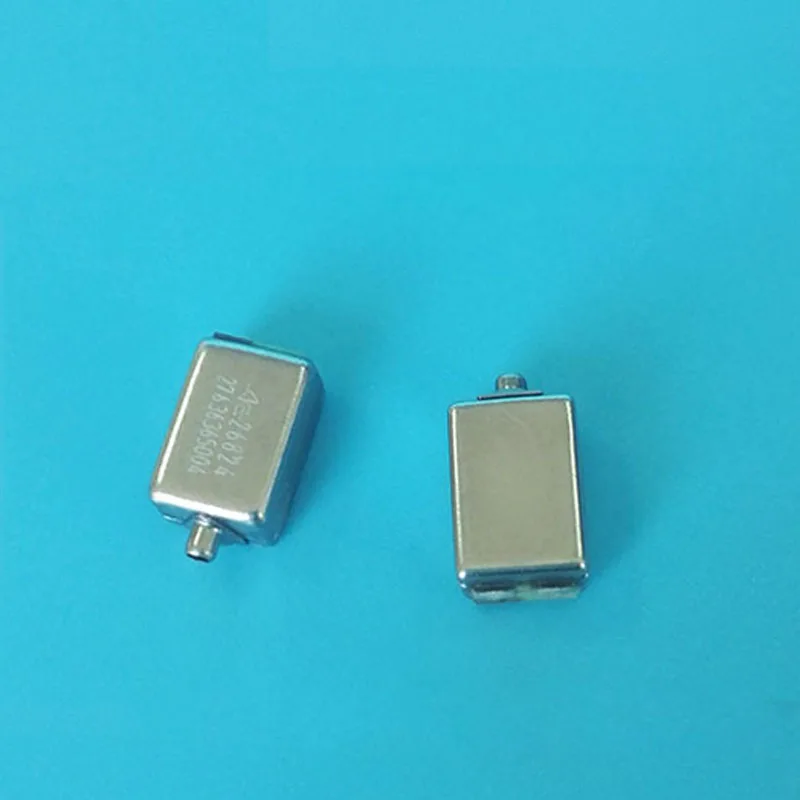

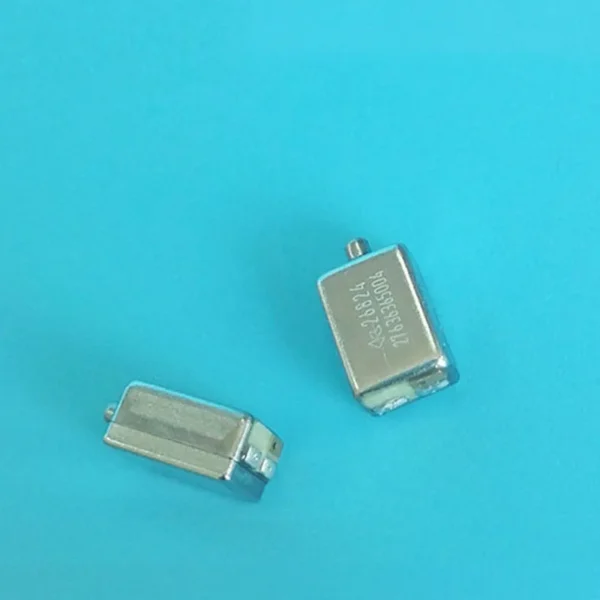

2pcs Knowles Drivers BK-26824 Balanced Armature Driver Speaker Receiver for In-Ear Monitor IEM Earphones
86.88$
Hign-concerned Chemical: None Origin: PH(Origin) Brand Name: SoundLink Manufacturer Part Number: BK-26824-000 Frequency Range: 200Hz ~ 5.6kHz Impedance: 22 Ohm Sound Pressure Level: 112dB Shape: Rectangular SENS(dB SPL) TO 100mV / TO 1mW: 114/118 Size / Dimension: 4.01mm H x 7.87mm L x 5.59mm W Configuration: Single MAX SPL 10% THD 1kHz(dB SPL): 127 THD@94dB SPL/THD@100dB SPL: 0.2%/0.2% Vented: Yes Notice: Please wire touch unit contacts for testing before […]
75 in stock
Description
- Hign-concerned Chemical: None
- Origin: PH(Origin)
- Brand Name: SoundLink
- Manufacturer Part Number: BK-26824-000
- Frequency Range: 200Hz ~ 5.6kHz
- Impedance: 22 Ohm
- Sound Pressure Level: 112dB
- Shape: Rectangular

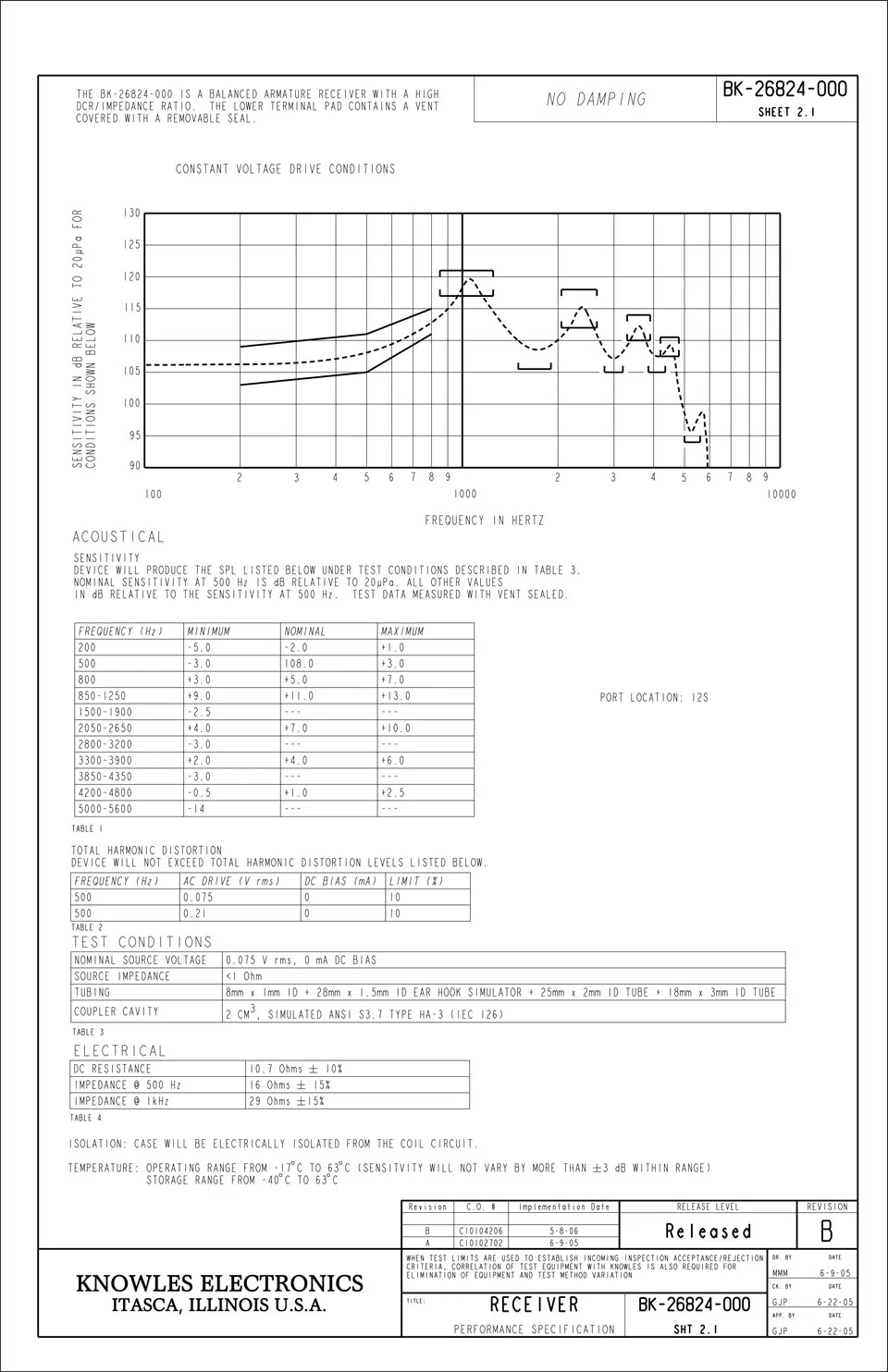

- SENS(dB SPL) TO 100mV / TO 1mW: 114/118

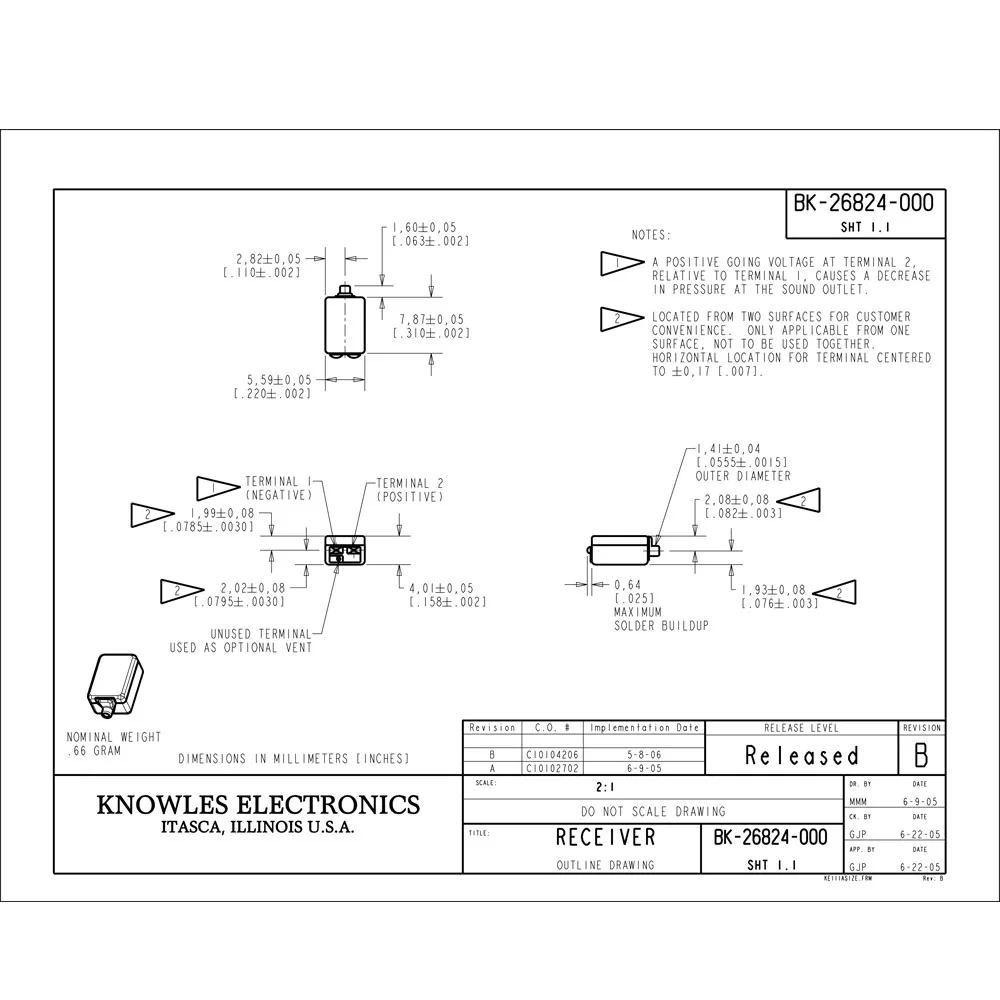

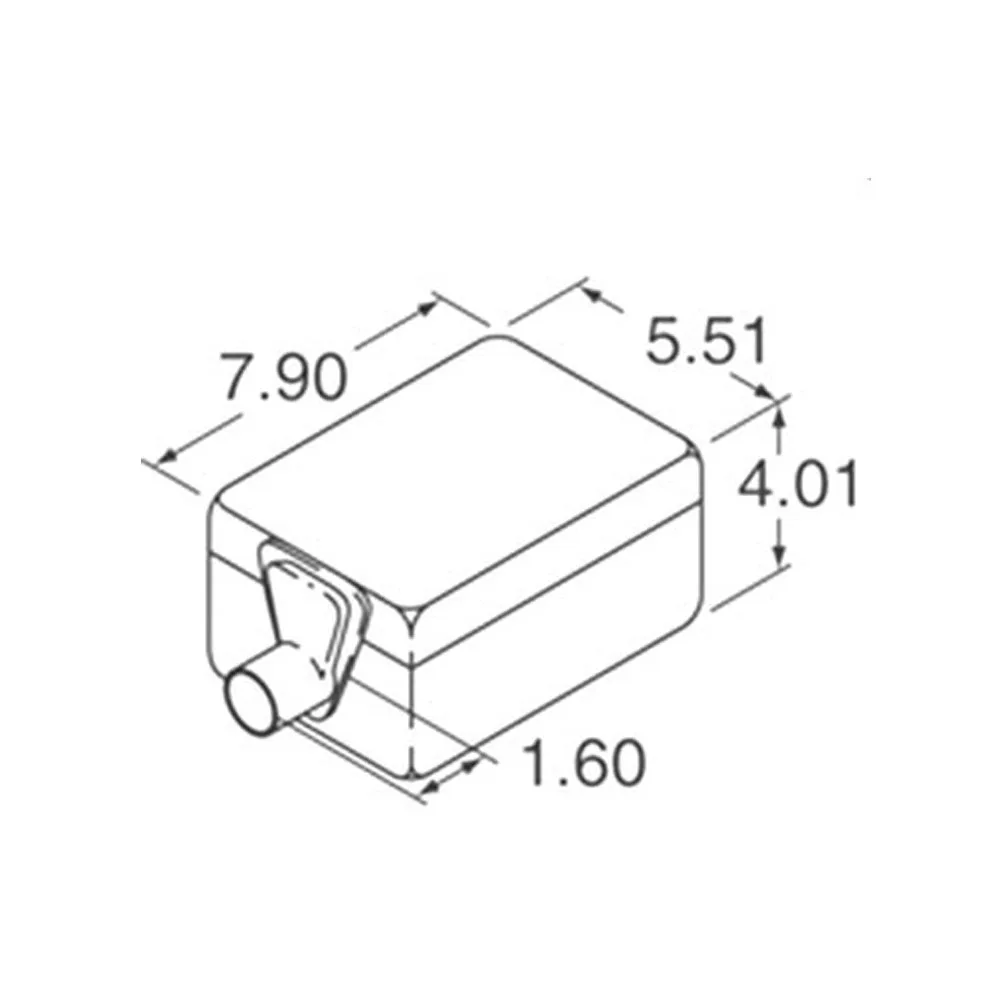

- Size / Dimension: 4.01mm H x 7.87mm L x 5.59mm W
- Configuration: Single
- MAX SPL 10% THD 1kHz(dB SPL): 127
- THD@94dB SPL/THD@100dB SPL: 0.2%/0.2%
- Vented: Yes
Notice: Please wire touch unit contacts for testing before installing it. Replacements are not available once drivers been soldered.
Manufacturer Part Number: BK-26824-000
Category: Audio Products
Family: Speakers
Frequency Range:200Hz ~ 5.6kHz
Impedance: 22 Ohm
Sound Pressure Level: 112dB
Shape: Rectangular
SENS(dB SPL) TO 100mV / TO 1mW: 114/118
Size / Dimension: 4.01mm H x 7.87mm L x 5.59mm W
Configuration: Single
MAX SPL 10% THD 1kHz(dB SPL): 127
THD@94dB SPL/THD@100dB SPL: 0.2%/0.2%
Vented: Yes
High-Performance Audio Products, Specialty Speakers, Magnetic, Balanced Armature, End Port
BK Series speakers provide broadband performance at value pricing. They are commonly used for full-range in-ear speakers and communications utilizing an earplug design.
Features:
High efficiency
Low distortion
Various port locations
Coil impedance
Damping options
Terminal configurations
Frequency responses available
Applications:
Full- range in-ear driver
Communications utilizing an earplug design
