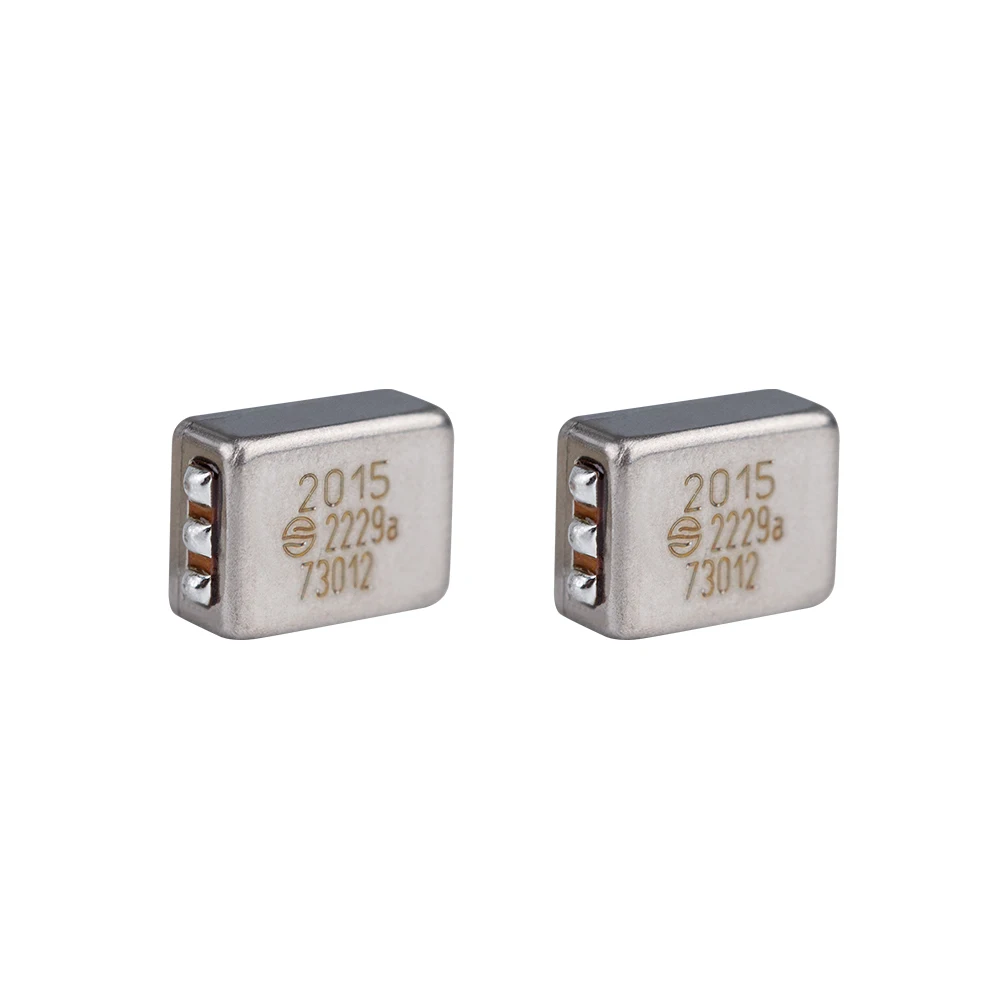

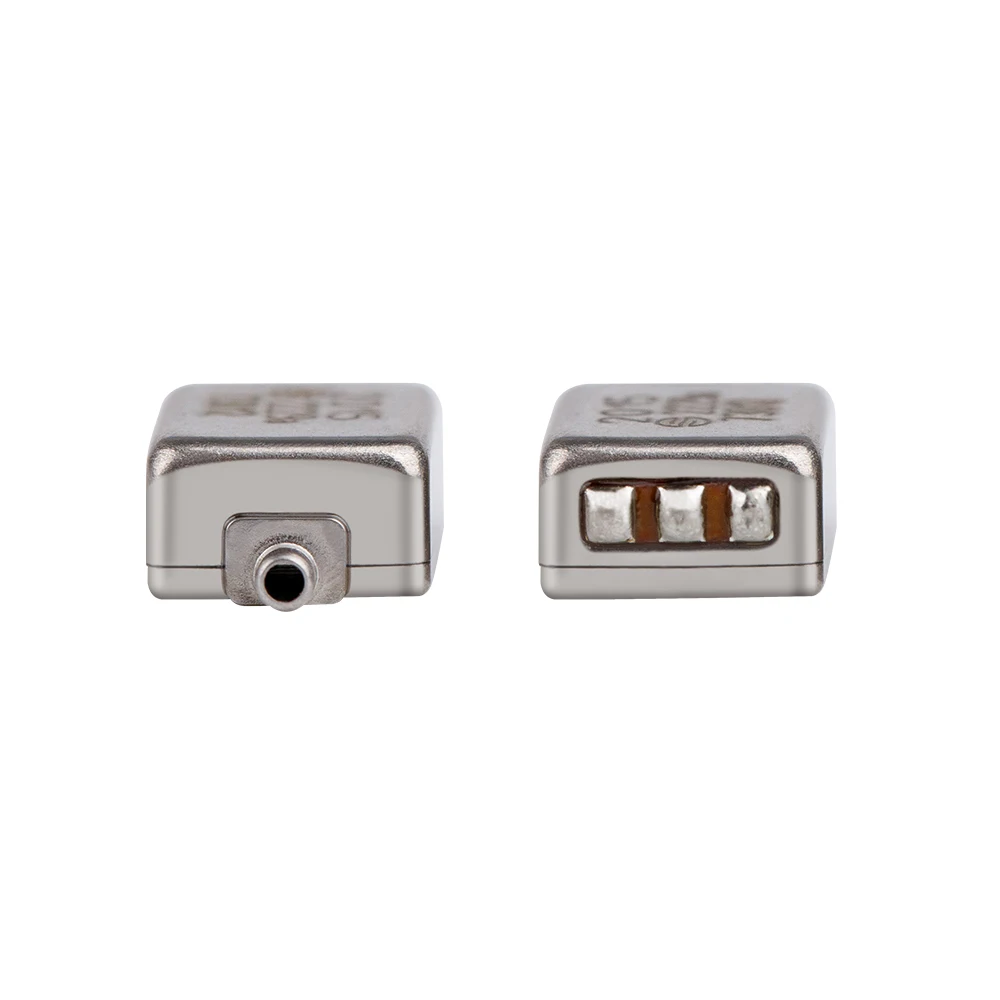

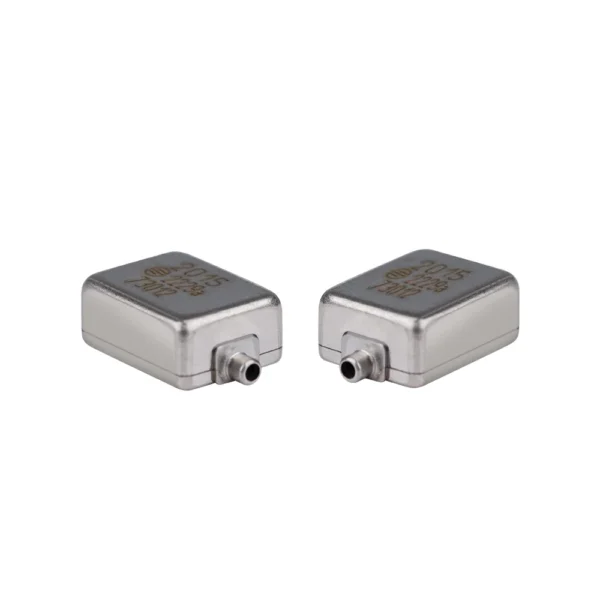

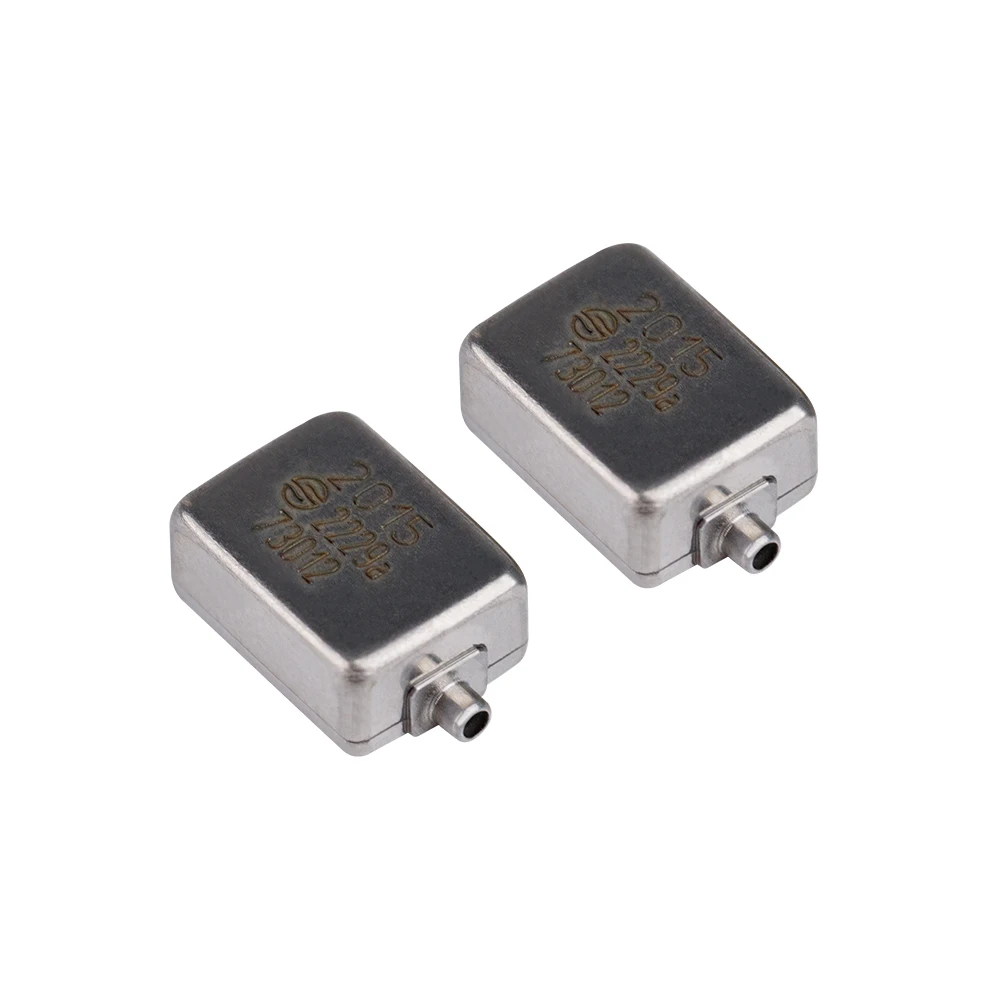

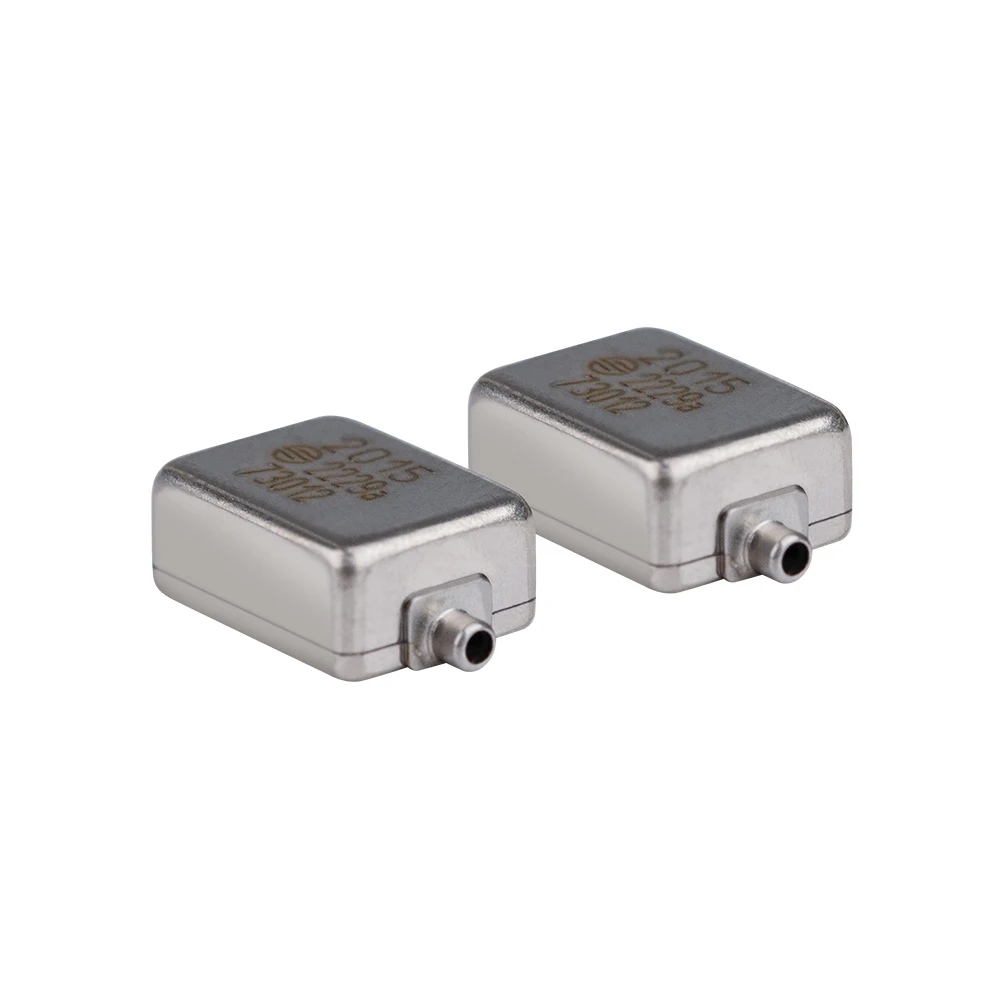

2pcs High Output Sonion 2015 BA Balanced Armature Receiver for DIY IEMs In-ear Monitor
110.88$
Hign-concerned Chemical: None Model Number: A070401-268 Brand Name: SoundLink Origin: Mainland China Item Type: ear care Item name: Sonion 2015 Weight: 0.94 gr. Case material: Ni80Fe20 Solder pad material: Sn96.5Ag3.0Cu0.5 Feature: High output, maximum peak output 140 dB Reminder Please wire touch unit contacts for testing before installing it. Replacements or refund are not available once drivers have been soldered. Mechanical data Weight: 0.94 gr. […]
40 in stock
Description
- Hign-concerned Chemical: None
- Model Number: A070401-268
- Brand Name: SoundLink
- Origin: Mainland China
- Item Type: ear care
- Item name: Sonion 2015
- Weight: 0.94 gr.
- Case material: Ni80Fe20
- Solder pad material: Sn96.5Ag3.0Cu0.5
- Feature: High output, maximum peak output 140 dB
Reminder
Please wire touch unit contacts for testing before installing it. Replacements or refund are not available once drivers have been soldered.
Mechanical data
Weight: 0.94 gr.
Case material: Ni80Fe20
Solder pad material: Sn96.5Ag3.0Cu0.5

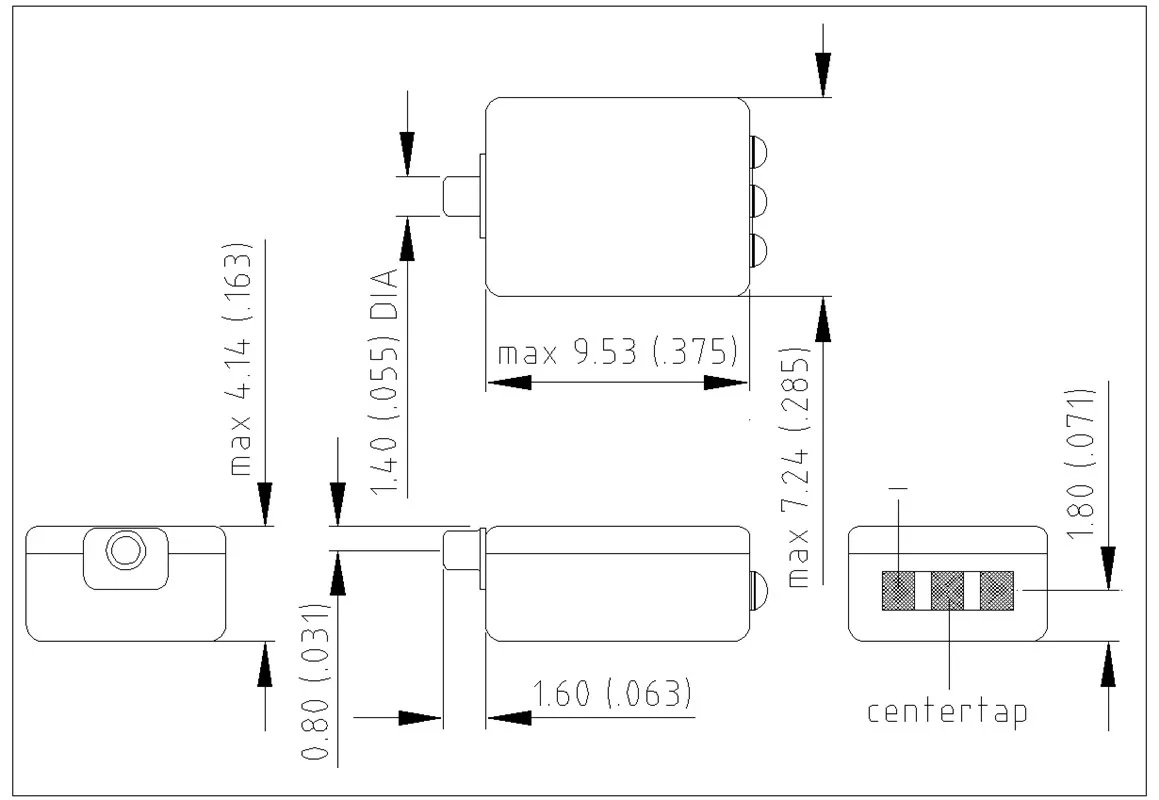

Dimensions: Refer to outline drawing
Features:
– Great BTE applications
– High output, maximum peak output 140 dB
– Balanced armature design
Product contain
Drivers sold by paired
Mechanical data
Weight: 0.34 gr
Case material: Ni80Fe15Mo5
Solder pad material: Sn96.5Ag3.0Cu0.5
Dimensions: Refer to outline drawing

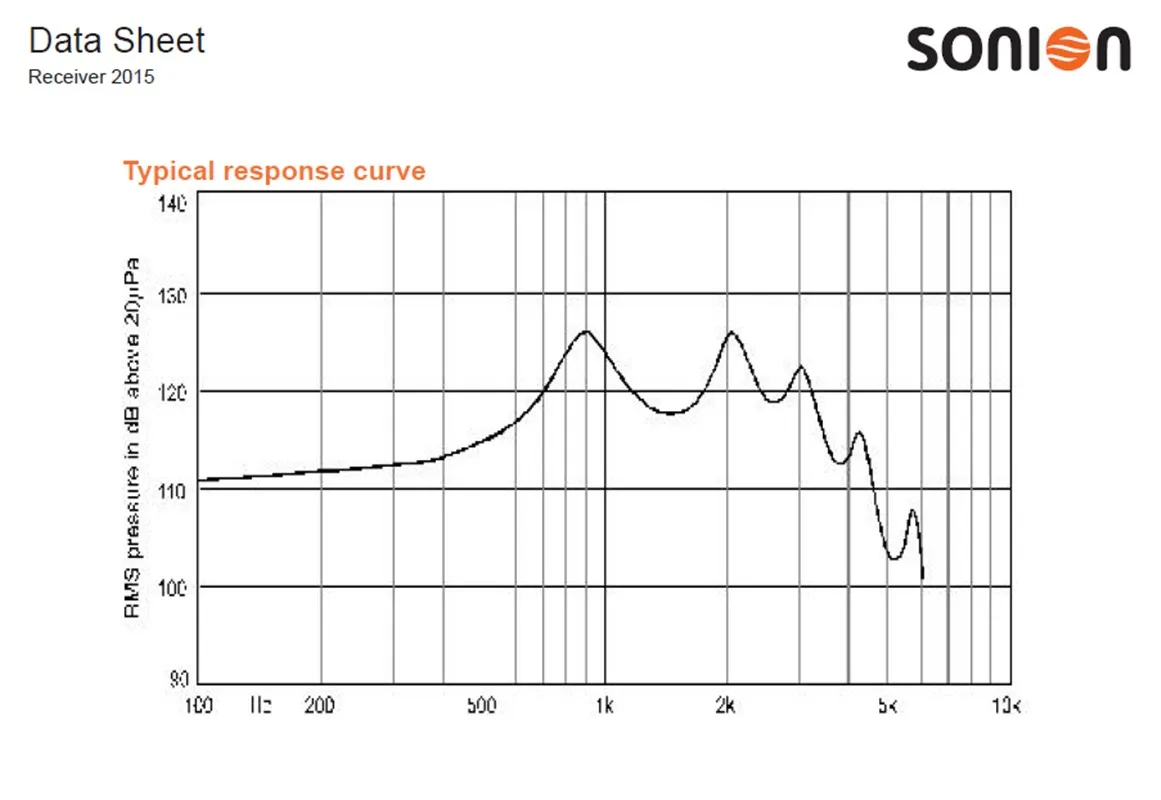

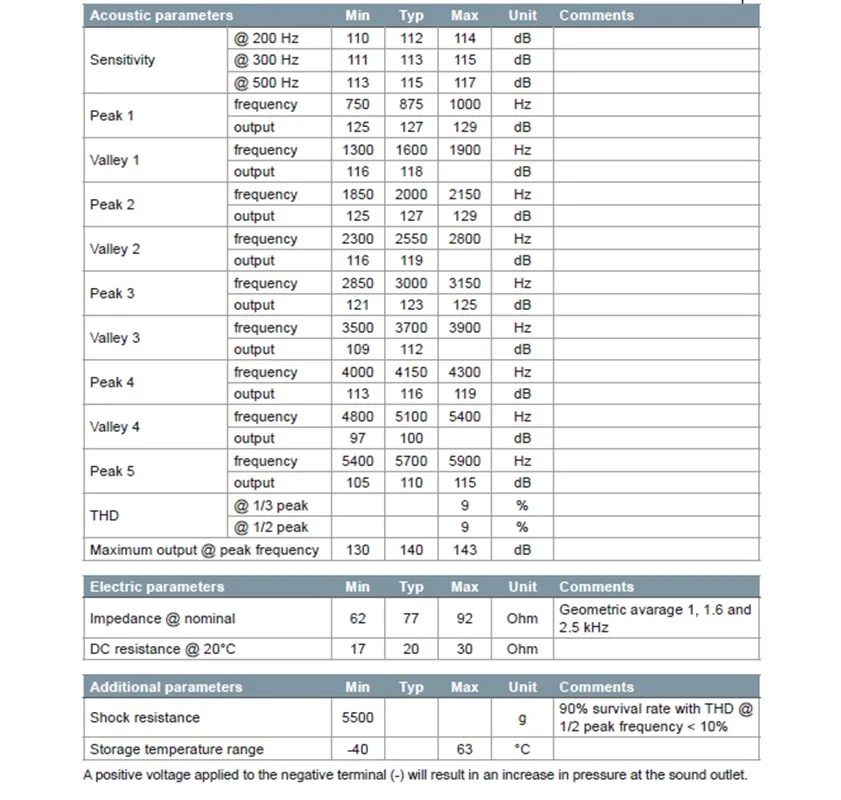

Specifications
The acoustic termination consists of: 8 mm x 1 mm ID + 28 mm x 1.5 mm ID + 25 mm x 2 mm ID +
18 mm x 3 mm ID + 2 cc coupler. The electrical input is a 3.6 mA RMS constant current signal from a
high impedance source, applied to the total winding. Enviromental conditions: 23 °C (73.4F), 50 % RH.
