2pcs DWFK-31785 Knowles Dual Tweeter Balanced Armature Driver Receiver Speaker for Hearing Aids IEM In Ear Monitors Earphones
226.32$
Hign-concerned Chemical: None Origin: PH(Origin) Brand Name: SoundLink Item Name: Knowels DWFK-31785-000 Type: Magnetic, Balanced Armature Frequency Range: 200Hz ~ 6.5kHz Sound Pressure Level: 101.2dB Size: 5.0mm H x 3.8mm L x 2.7mm W Impedance: 30 Ohm SENS(dB SPL) TO 100mV / TO 1mW: 106/111 MAX SPL 10% THD 1kHz(dB SPL): 120 THD@94dB SPL/THD@100dB SPL: 0.4%/0.5% Vented: yes Knowles DWFK-31785 Dual Tweeter Balanced Armature Driver Receiver Speaker Manufacturer: […]
86 in stock
Description
- Hign-concerned Chemical: None
- Origin: PH(Origin)
- Brand Name: SoundLink
- Item Name: Knowels DWFK-31785-000
- Type: Magnetic, Balanced Armature
- Frequency Range: 200Hz ~ 6.5kHz
- Sound Pressure Level: 101.2dB
- Size: 5.0mm H x 3.8mm L x 2.7mm W
- Impedance: 30 Ohm
- SENS(dB SPL) TO 100mV / TO 1mW: 106/111
- MAX SPL 10% THD 1kHz(dB SPL): 120
- THD@94dB SPL/THD@100dB SPL: 0.4%/0.5%
- Vented: yes

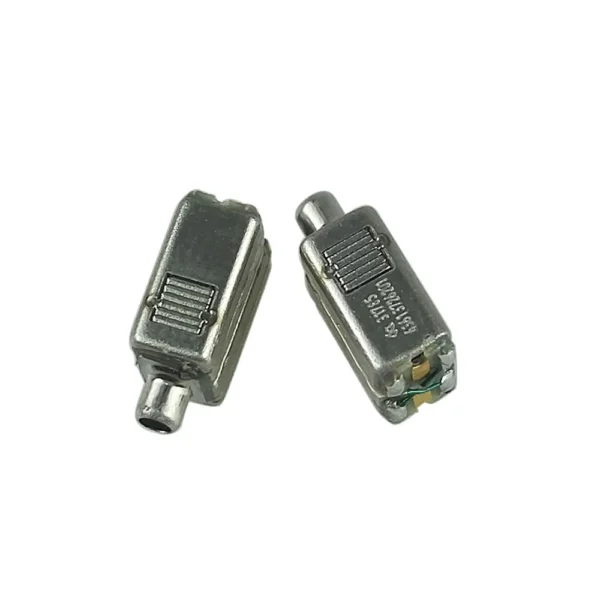

Knowles DWFK-31785 Dual Tweeter Balanced Armature Driver Receiver Speaker
Manufacturer: Knowles
Type: Magnetic, Balanced Armature
Frequency Range: 200Hz ~ 6.5kHz
Impedance: 30 Ohm
Sound Pressure Level: 101.2dB
SENS(dB SPL) TO 100mV / TO 1mW: 106/111
MAX SPL 10% THD 1kHz(dB SPL): 120
THD@94dB SPL/THD@100dB SPL: 0.4%/0.5%
Size: 5.0mm H x 3.8mm L x 2.7mm W
Vented: Yes
Configuration: Dual
Features:
1, Small size
2, Excellent high frequency extension
3, High efficiency (SPL/size)
Reminder:
Please test the driver first before soldering , replacements are not available once drivers are soldered
