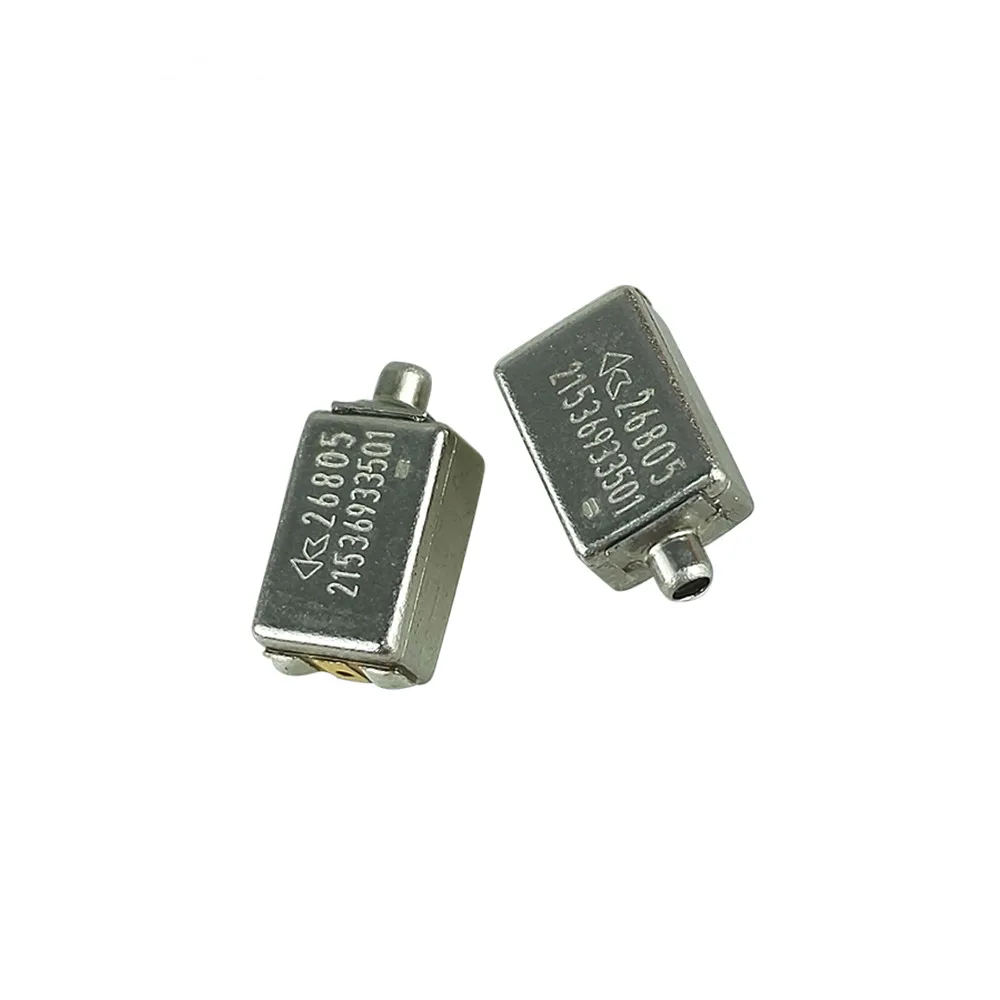

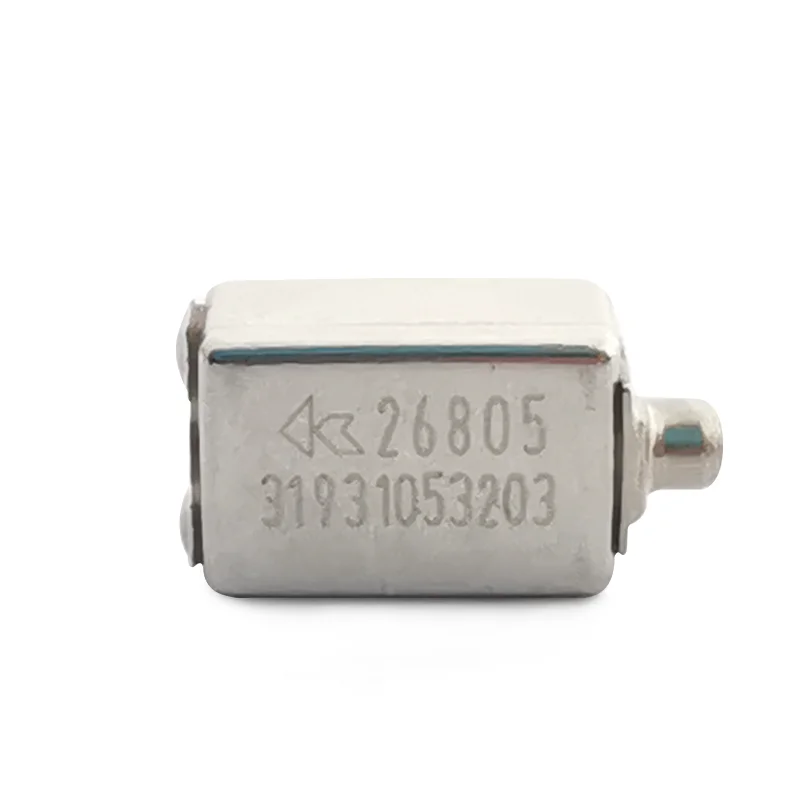

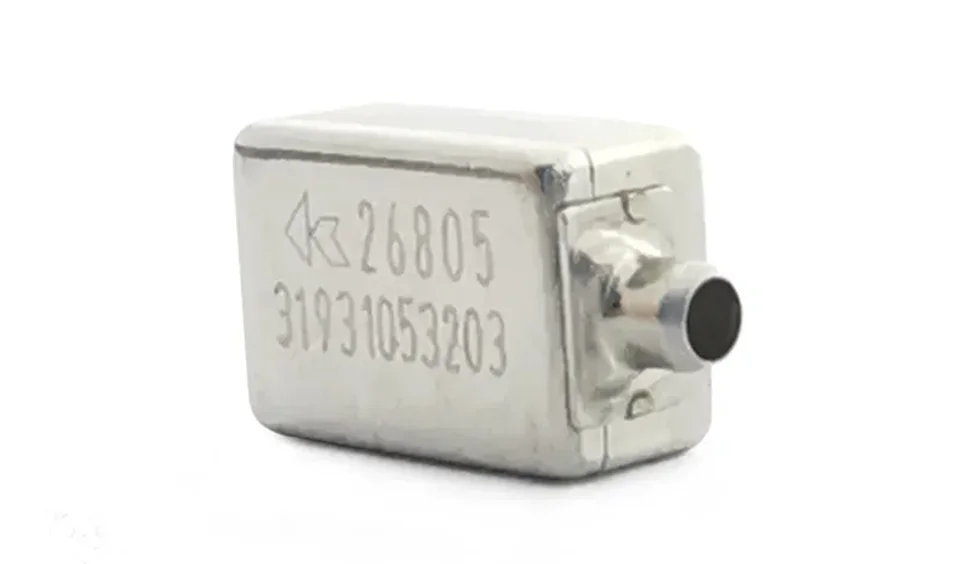

2 PCS Knowles ED-26805 IEM Driver Medium-high Frequency Single BA Drivers Speaker Receiver For In Ear Monitor DIY Earphones

2 PCS Knowles ED-26805 IEM Driver Medium-high Frequency Knowles BA Drivers Speaker Receiver For In Ear Monitor DIY Earphones

Item Name: IEM receiver

Model Number: ED-26805

Category: Audio product

Type: Balanced armature speaker, receiver

Size: 6.3mm H x 4.3mm L x 3.0mm W

Configuration: Single

Impedance: 28 Ohm

SENS(dB SPL) TO 100mV / TO 1mW: 109/113

MAX SPL 10% THD 1kHz(dB SPL): 123

THD@94dB SPL/THD@100dB SPL: 0.3%/0.3%

Vented: Yes

Compact size – 0.081cc Appreciable output power – 112dB nominal, 129dB maximum Two-terminal zero-bias and three-terminal center-tapped configurations Undamped, screen damped, internally damped, and FerrofluidTM damped responses with 2dB, 4dB, or 6dB peak amplitude Numerous port locations Wide range of coil impedances Available with FerrofluidTM technology for screenless damping and improved shock performance.
Knowles’ most versatile and most popular receiver, the ED series powers applications ranging from Standard BTE aids and Mini-BTE aids to Full Concha and Half Concha ITE instruments. The ED is made even more functional by the addition of ferrofluid. Its shock survivability makes it a robust receiver for many applications. FED receivers also damp acoustic peaks and reduce vibration to solve feedback problems and closing issues in ITE hearing instruments.

Notice : Please wire touch unit contacts for test before install it. Replacements are not available once drivers been soldered.
