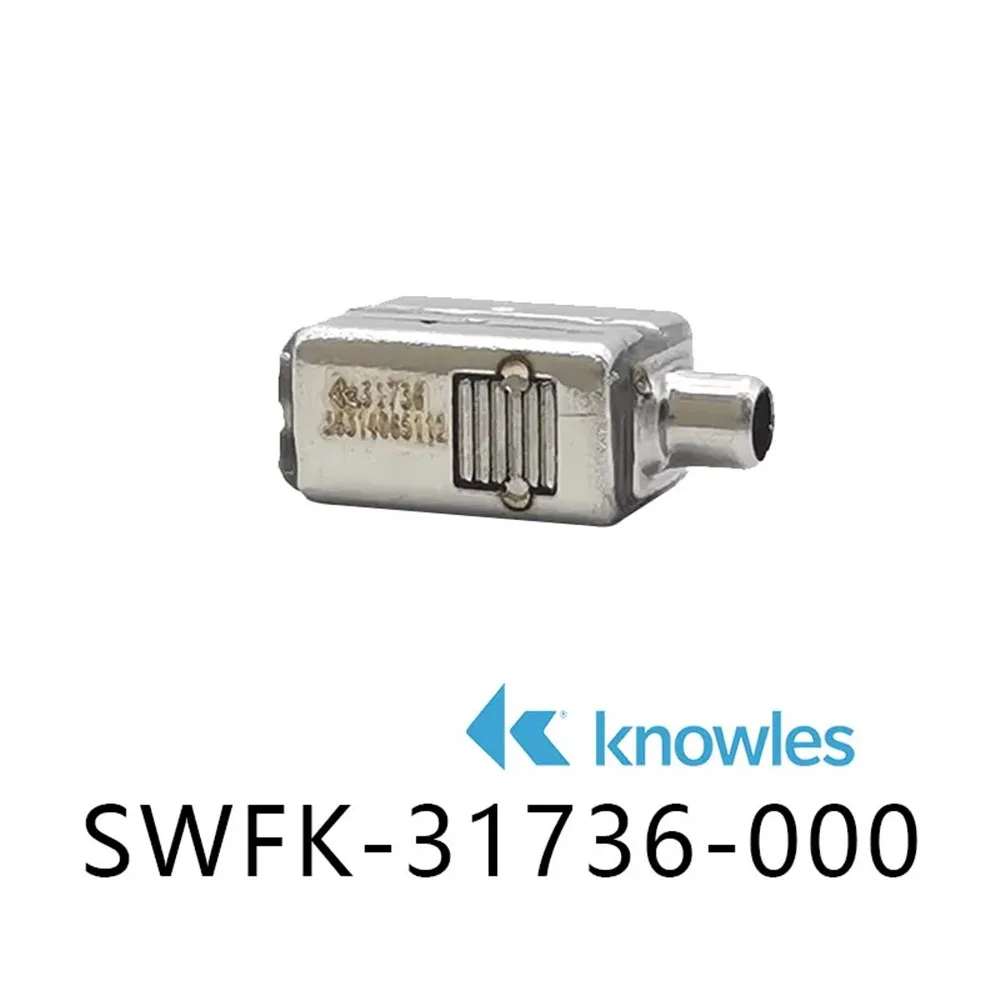

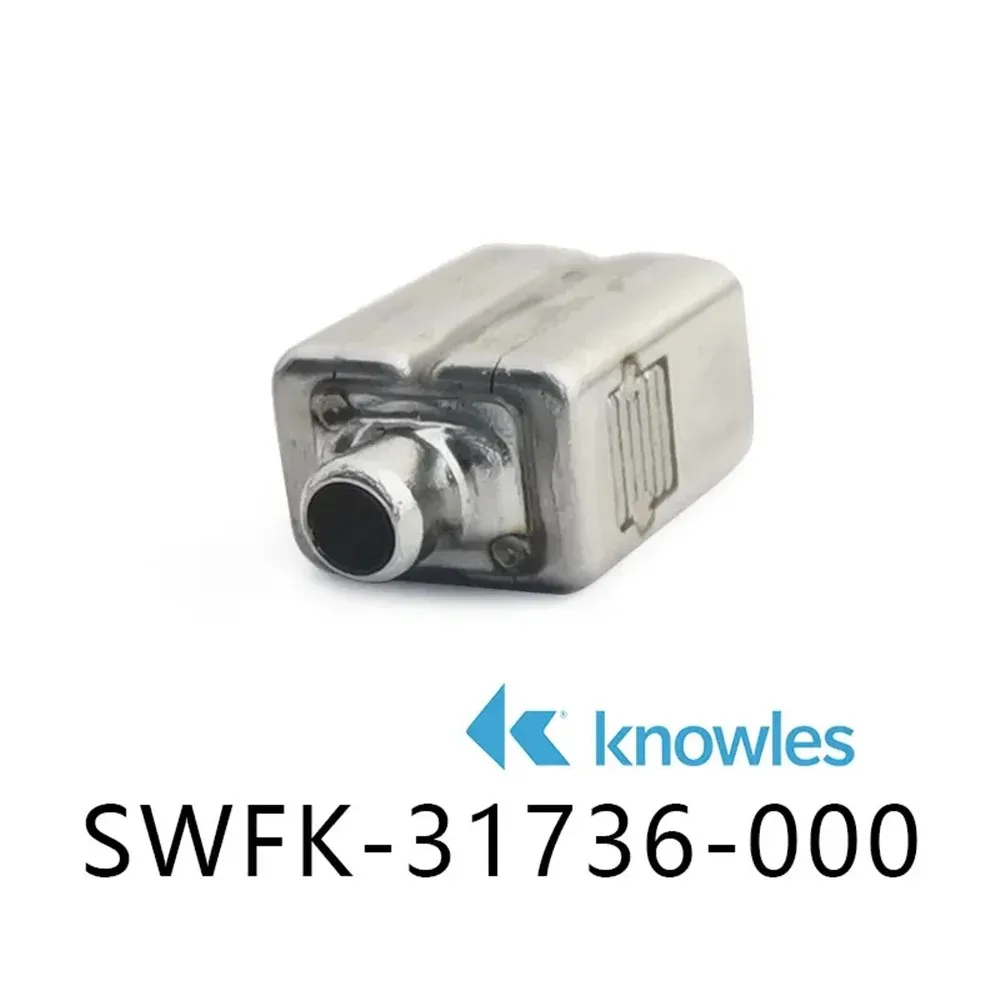

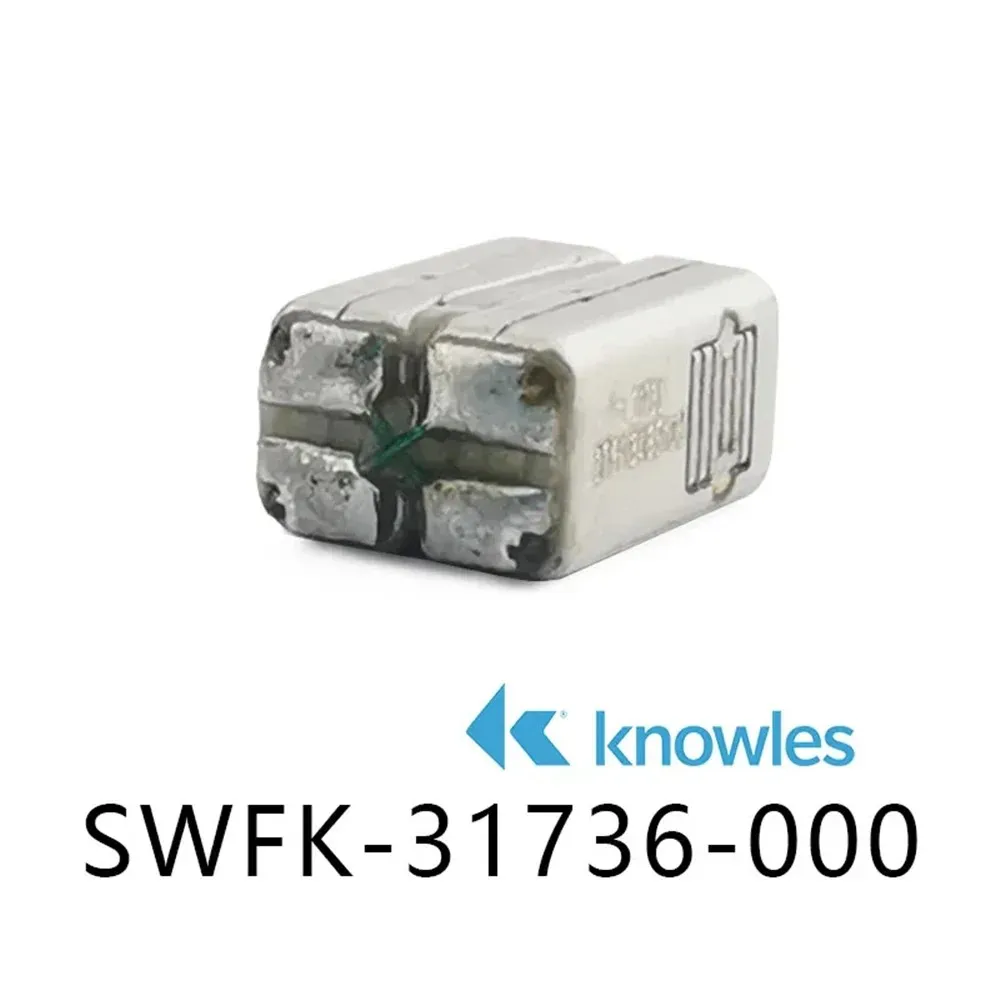

1pcs Knowles SWFK-31736-000 Balanced Armature Receiver Dual IEM Driver Super Tweeter Miniature magnetic receiver
60.48$
Hign-concerned Chemical: None Model Number: Knowles SWFK-31736-000 Brand Name: SoundLink Origin: Mainland China Item Type: ear care Product Name: SWFK-31736-000 Type: Receiver, Magnetic, Balanced Armature Frequency Range: 200Hz ~ 7.6kHz Impedance: 6.9 Ohm Sound Pressure Level: 97dB SENS(dB SPL) TO 100mV / TO 1mW: 102/100 MAX SPL 10% THD 1kHz(dB SPL): 114 THD@94dB SPL/THD@100dB SPL: 0.2%/0.2% Size: 5.03mm H x 3.86mm L x 2.73mm W Vented: No Configuration: Dual Reminder: 1, […]
100 in stock
Description
- Hign-concerned Chemical: None
- Model Number: Knowles SWFK-31736-000
- Brand Name: SoundLink
- Origin: Mainland China
- Item Type: ear care
- Product Name: SWFK-31736-000
- Type: Receiver, Magnetic, Balanced Armature
- Frequency Range: 200Hz ~ 7.6kHz
- Impedance: 6.9 Ohm
- Sound Pressure Level: 97dB
- SENS(dB SPL) TO 100mV / TO 1mW: 102/100
- MAX SPL 10% THD 1kHz(dB SPL): 114
- THD@94dB SPL/THD@100dB SPL: 0.2%/0.2%

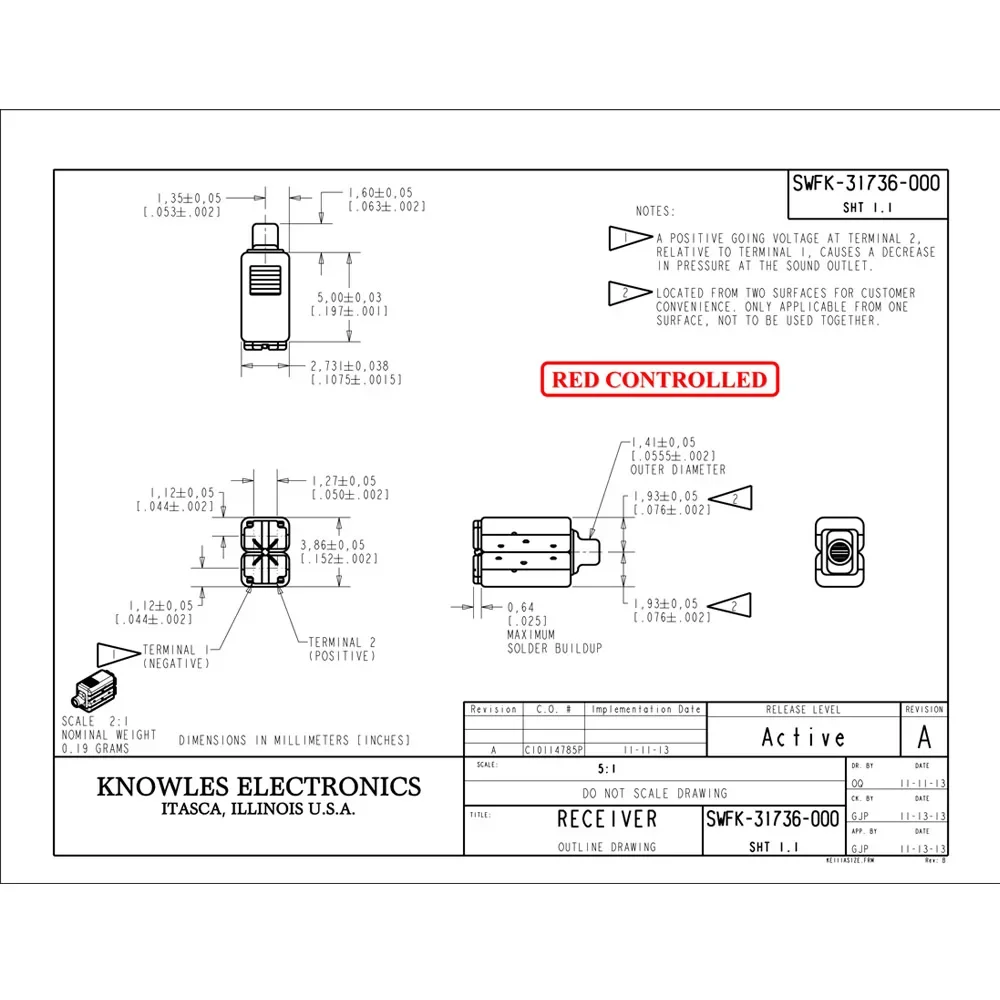

- Size: 5.03mm H x 3.86mm L x 2.73mm W
- Vented: No
- Configuration: Dual
Reminder:
1, Please test the drivers first before soldering , replacements are not available after drivers been soldered.
2, If you buy more than 50 pcs, please contact us for better price. Thank you ^^
SWFK-31736 Knowles dual tweeter balanced armature driver
Model: SWFK-31736-000
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Category: Audio Products
Type: Receiver, Magnetic, Dual Tweeter Balanced Armature
Frequency Range:200Hz ~ 7.6kHz
Impedance: 6.9 Ohm
Sound Pressure Level: 97dB
SENS(dB SPL) TO 100mV / TO 1mW: 102/100
MAX SPL 10% THD 1kHz(dB SPL): 114
THD@94dB SPL/THD@100dB SPL: 0.2%/0.2%
Size: 5.03mm H x 3.86mm L x 2.73mm W
Vented: No
Configuration: Dual
